1004 Series-WISENMESHNET® B-Type Smart Gateway
Features



WISENMESHNET® B-Type Smart Gateway (1004 Series) @25°C
Basics
Primary Battery Power
Qty. x 4 (3.6V D-Cell ER34615M, 2Amp Output)
Secondary DC Power
7V - 32VDC (Min. Current >= 2Amp)
Or with external 100-240VAC adaptor
Mobile Network Stop Voltage
>= 5.5VDC
Mesh Stop Voltage
4.5VDC
Storage
8GB (Min. 1.5 Yrs Storage)
L x W x H
180 x 140 x 60mm
Weight
<= 2.0kg
Cable Gland
Qty. 1 x EMC-CMA12 for external RS232 connection
Qty. 1 x EMC-CMA14 for external DC input power connection
Wire Connection
DC In - Spring type wiring terminal
External Interface
Wireless Module
Compatible with 2G/2.5G/3G/4G of Micro SIM card
Wired Port
RS232
WSN Interface
WSN Protocol
WISENMESHNET® Protocol
Low Power Mode
T>=5min and Server Connection Ratio DTU_T = [1,99]T
Industrial Standard
Casing and Painting Materials
Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
Operating Temperature
-40 to 80°C
Certificates
CE, London Underground Product Approval
Applications

A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T, F

modifications) to and data collection from all the nodes involved in a mesh network; meanwhile, it forwards the data and system

information to the remote server via mobile network or the local server via standard RS232 connections.

Non-Standard Accessory
  • RS232 to USB connection cable from a gateway to a PC for local parameter configuration; [Software to use: WISENMESHNET® Standard Serial Port Software V3.0.11 or above]
  • TTL to USB 1m cable to read the mesh data from a gateway in parallel to the mobile network data transmission; [Software to use: WISENMESHNET® Standard Serial Port Software V3.0.11 or above]
  • Indoor test adaptor: 110-240VAC to 12VDC@3.0A;
  • Outdoor adaptor, IP68: 110-240VAC to 12VDC@5.0A.
Gateway PCB Layout

Figure. V8.0 B-Gateway Layout (Released after Nov. 2017).
Figure. V7.0 B-Gateway Layout (Released after Oct. 2016).
Highlights

  • When connected to a remote server, “NET” LED will be constantly on;
  • Unlike A-Gateway which takes “IP Address” and “Port Number” as remote server destination, B-Gateway uses “Domain Name” and “Port Number”

  • instead.

Figure. 110-240VAC to 12VDC@5A Adapter Connection.
Figure. RS232 to USB Connection.



Figure. TTL to USB Connection.
Installation Guidance

1004-1

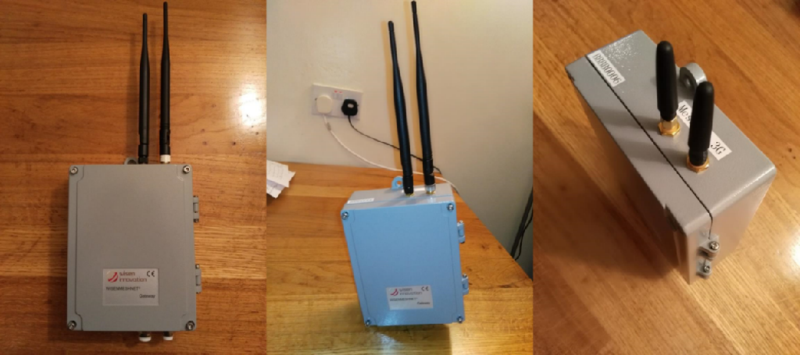

Figure. B-Gateway Product Photos.

1004-2

Figure. Gateway Fixing Bracket.
Figure. SIM Card Orientation.
