WISENMESHNET® Product
1C02 Series-WISENMESHNET® 2-Channel 4-20mA/1-5V Interface Node
Features



WISENMESHNET® 2-Channel 4-20mA/1-5V Interface Node (1C02 Series) @25°C
Basics
Battery Power
Qty. x 4 (3.6V D-Cell ER34615M)
Alternative DC Input
12-32VDC@min. 1A
DC Output
12VDC±0.3V @max. 0.3A (Note: confirm against the sensor specification)
Power On Time to External Sensor
2s to reach stable reading (Note: confirm the sensor stable time before use)
Accuracy Stop Voltage
5.9VDC
Mesh Stop Voltage
4.0VDC
Battery Connection
Standard Metal Battery Holder
Storage
Min. 450 Messages during Meshing
L x W x H
180 x 140 x 60mm
Weight
1.5kg
Cable Gland
Qty. 2 x EMC-CMA12 for external sensor connections
Qty. 1 x EMC-CMA12 for external DC input power connection
Wire Connection
Spring type wiring terminal
Externally Connected Sensor
Sensor Type
4-20mA / 1-5V Sensor Type
No. of Inputs
2 Channels
Sensor Connection
DC_Out, IN, GND
Parameter
mA / V

(Use “4-20mA to 1-5V Switch” for each channel on the PCB to change the

sampling parameter.)

Range
4.0000 to 20.0000mA / 1.0000V to 5.0000V
Accuracy
0.1% at Any Reading
Resolution
0.0003mA or 0.0001V
Cable Length
<= 4.5m
Industrial Standard
Casing and Painting Materials
Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
Operating Temperature
-40 to 80°C
Certificates
CE, London Underground Product Approval
Applications
WISENMESHNET® 4-20mA/1-5V Interface Node is compatible with all different types of 4-20mA/1-5V sensors of 12VDC and <=300mA power supply, hence it can be applied to all the corresponding monitoring projects.
Example of 4-20mA sensors: Manufacturer such as Micro-Epsilon. http://www.micro-epsilon.com/temperature-sensors/index.html?sLang=us
Special Notice on data format corresponding to the 4-20mA/1-5V Switch


Switch Status
CH1 Reading
CH2 Reading
00
1-5V
1-5V
01
4-20mA
1-5V
02
1-5V
4-20mA
03
4-20mA

4-20mA

1c02-6


Installation Guidance

1C02-1

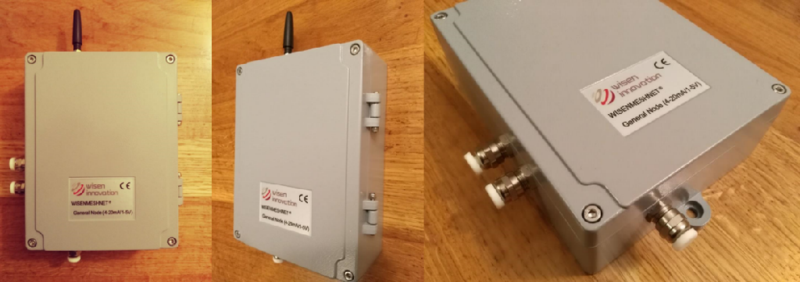

Figure. 2-Channel 4-20mA/1-5V Interface Node Product Photos.

1c02-3    1c02-41c02-5
                 Figure. Fixing Brackets.                      Figure. Individual 4-20mA/1-5V Sensor Wire Connections
