WISENMESHNET® Product
1003 Series-WISENMESHNET® A-Type Smart Gateway
Features


WISENMESHNET® A-Type Smart Gateway (1003 Series) @25°C
Basics
AC Power
100V to 240V(AC)
DC Power
7V - 18V (9-12V hardware version released before August 2015)
Internal UPS
Min. 7 days Meshing
Working Current (DC)
Ave. 45mA@9V; Max. 2Amp@GPRS Registration
Storage
8GB (Min. 1.5 Yrs Storage)
L x W x H
180 x 140 x 60mm
Weight
1.5kg
Cable Gland
Qty. 1 x AC Power In - EMC-CMA14
Qty. 1 x DC Power In - EMC-CMA12
Wire Connection
Qty. 1 x AC In - Spring type wiring terminal
Qty. 1 x DC In - Spring type wiring terminal
External Interface
Wireless Module
2G ONLY GSM/GPRS (850/900/1800/1900MHz)@9600bps
Tested SIM: Standard China Mobile, China Unicom; UK Vodafone, O2, Orange, T-Mobile, 3.
Wired Port
RS232/USB
Industrial Standard
Casing and Painting Materials

Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder

Coating)

Operating Temperature
-40 to 80°C
Certificates
CE, London Underground Product Approval
Applications

A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T, F

modifications) to and data collection from all the nodes involved in a mesh network; meanwhile, it forwards the data and system

information to the remote server via mobile network or the local server via standard RS232 connections.

Notice

Ensure that the SD memory card is unplugged if a gateway is reprogrammed (this action does not apply to the mesh reprogramming on a gateway)

Different Releases of Gateway Internal Connection Layouts:

Figure. Version Two: Gateway Layout (Released after 2015). (Note: When connected to a remote server, “SIM900_NET” LED

will be constantly on.)

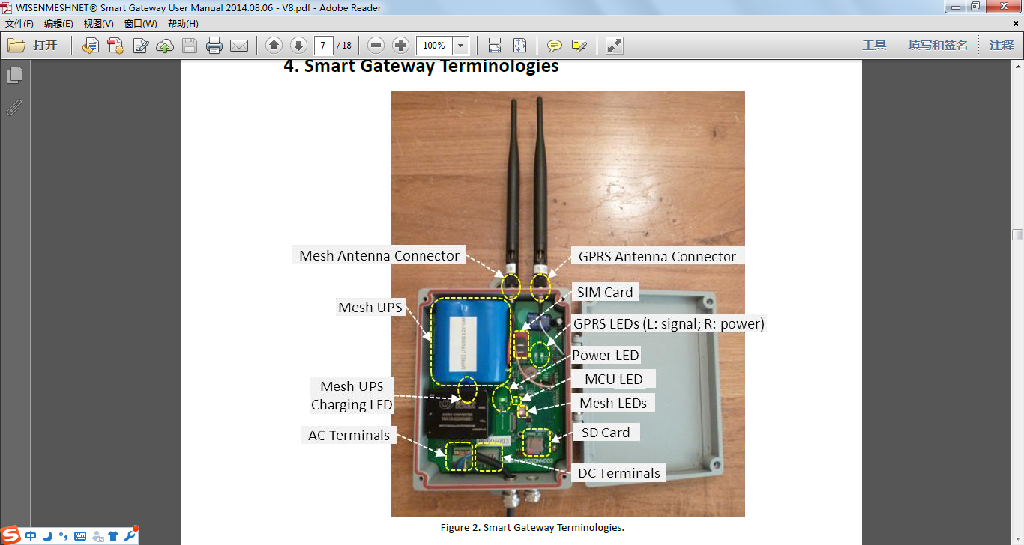

Figure. Version One: Gateway Layout (Released before 2015). (Note: When connected to a remote server, “SIM900_signal”

LED will be flashing slowly. However, this cannot be considered as a definite connection, for this information, a customer

needs to check from the visualisation web page or check with our system administrator.)

Figure. Version One: Gateway - AC/DC Power Wiring.
Installation Guidance

Figure. A-Type Gateway Product Photos.

1004-2/1003-5

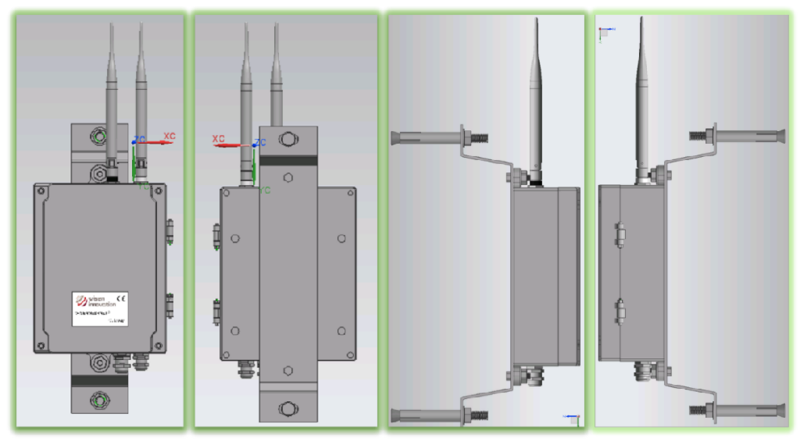

Figure. Gateway Fixing Bracket.
