  • Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • Others

    CE

    FCC

    ACMA Certified

  • Common Software

    WiSen@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
    TCP/IP Software: Data communication between a gateway and 3rd Party Server of a fixed public IP.     Note: Please refer to "Technical Document" for further instructions, at WiSen® Visualisation Platform.

    Leica GeoMos Specific

    Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.

    1. When a Vision Unit is deployed at Control centre/Data centre, the LED warnings can be configured with one or more projects. So that a visual and auditory warning system can be established in the centre. This frees the operators from frequent checking of warning emails;

    2. When a Vision Unit is deployed on site: A. the image data can help on illustrating the progress of the construction works; B. the LED and Buzzer warnings can present a systematic visual and auditory warning to the on-site team so that the maximum safety can be achieved.



Note: Vision Unit relies on a stable 4G connection, so its image data can be transferred smoothly and furthermore, the LED warnings can be received from a remote control centre.

Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
Fire Proof:  Approved

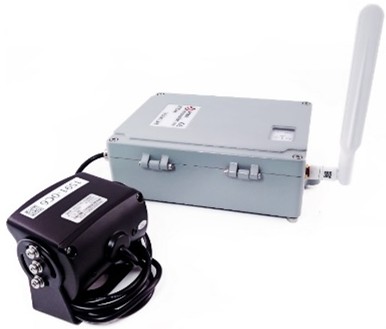

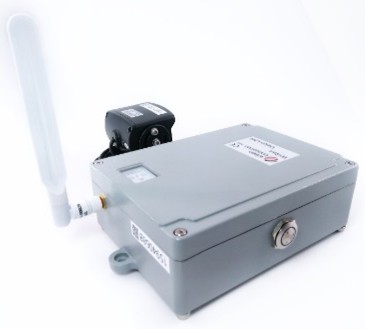

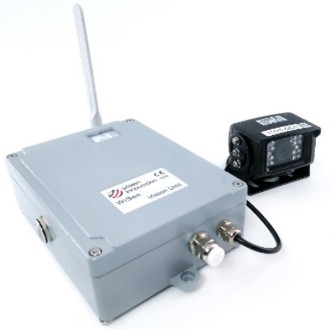

3002 Type - Vision Unit with X0 Camera & X1 Camera

ꁆ ꁇ

WiSen® Product (Usable with both WiSenMeshWAN® & WiSenMeshNET® Systems)
