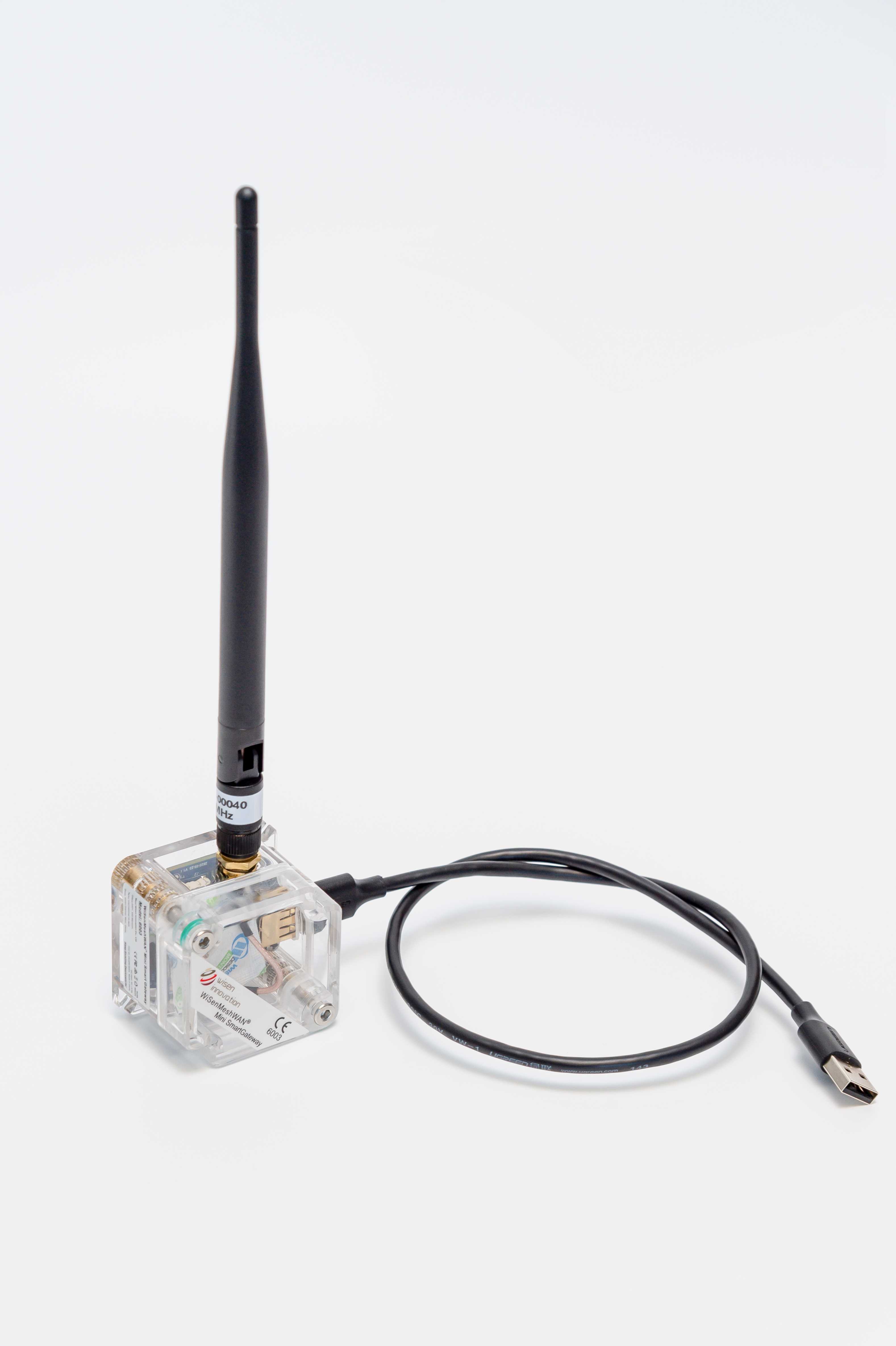

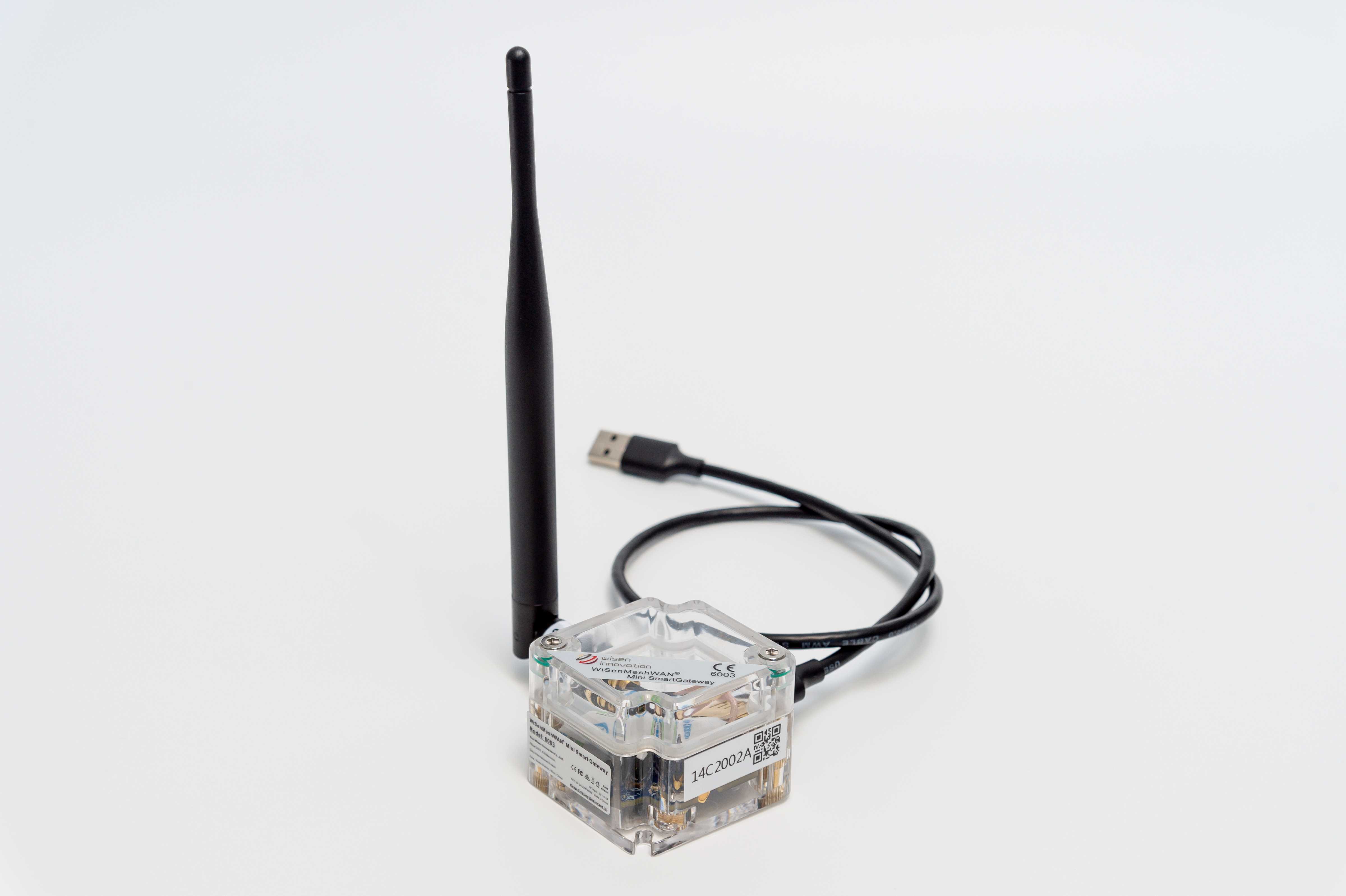

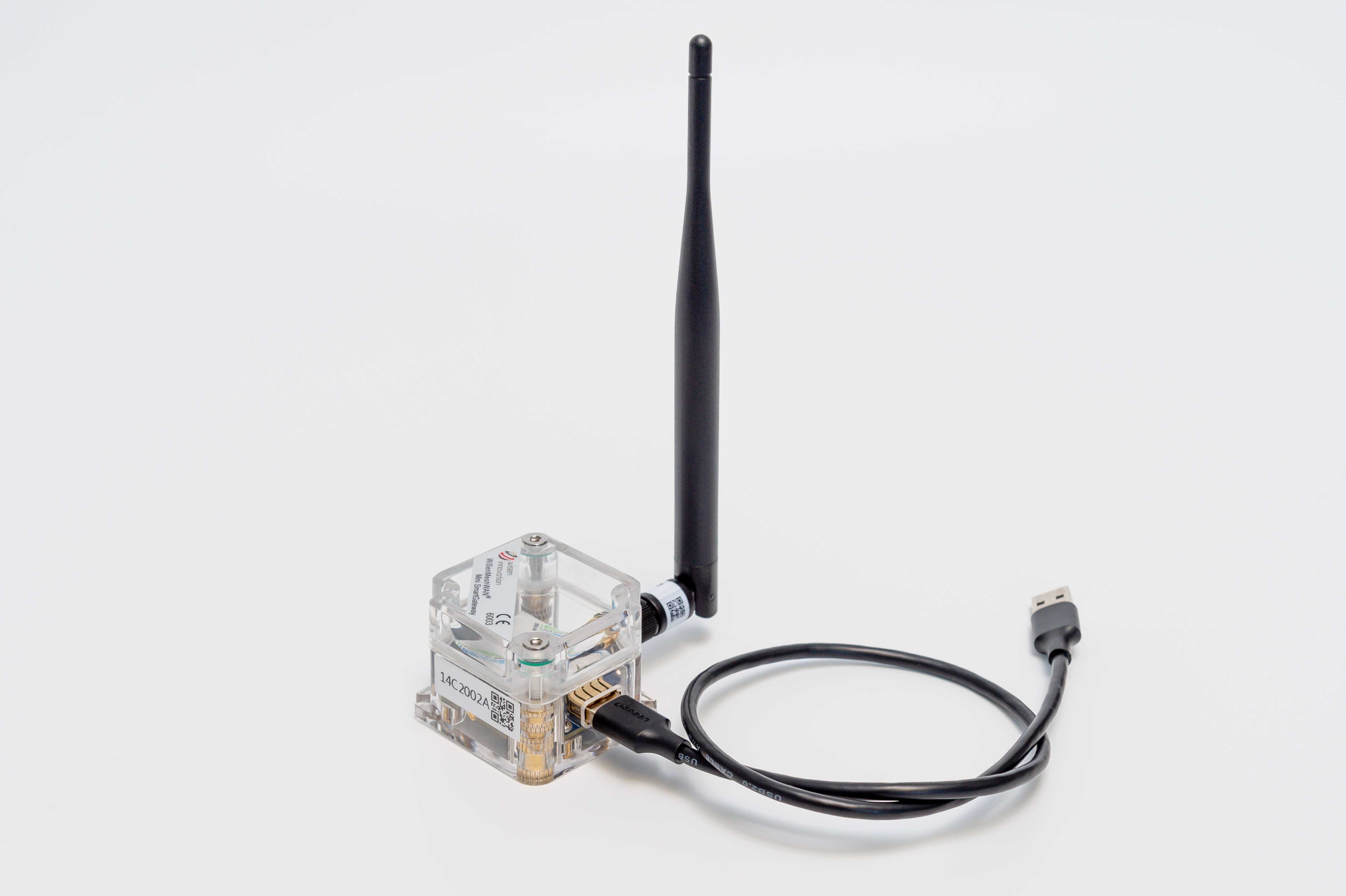

•   1003 Type - WISENMESHNET® Mini Smart Gateway
    Primary DC Power USB 5VDC
    L x W x H 52 x 50 x 40mm
    Weight < 80g
    Cable Gland Qty. 1 x USB Connection
    Local Storage N.A.
      External Interface
    Wired Port USB
      WSN Interface
    Mesh Wireless Interface WISENMESHNET® Protocol
      Standard System Parameter
    Temperature Measurement Range: -40 to 85°C, Accuracy: ±2°C
    Voltage Accuracy: ± 0.1V
      For Installation Brackets, please refer to https://www.wisencn.com/accessory


  • Common Information

    Type Specific

    Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

    Note: Only for "Ethernet Daughter Board: Local Software Configuration Method".

  • CE

    ACMA Certified


  • Common Software

    Leica GeoMos Specific

    Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.
    WiSen® Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen® SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen® Standard Serial Port Monitoring Software.zip: Data communication via a gateway on a Windows PC;
    Please refer to "Technical Document" for instructions.
    WiSen Downloader Installer v1.2.0.msi: Software to integrate Wisen data into Leica GeoMoS.
Applications: A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T, F modifications) to and data collection from all the nodes involved in a mesh network; meanwhile, it forwards the data and system information to the local PC via standard USB connection.
Casing and Painting Materials:  PC
Operating Temperature:  -40 to 85°C
Certificates: CE, ACMA, RoHS, REACH,Network Rail Approval (UK), London Underground Product Approval (UK)

1003 Type - Mini Smart Gateway

WiSenMeshNET® Product @ 2.4GHz Radio Frequency
