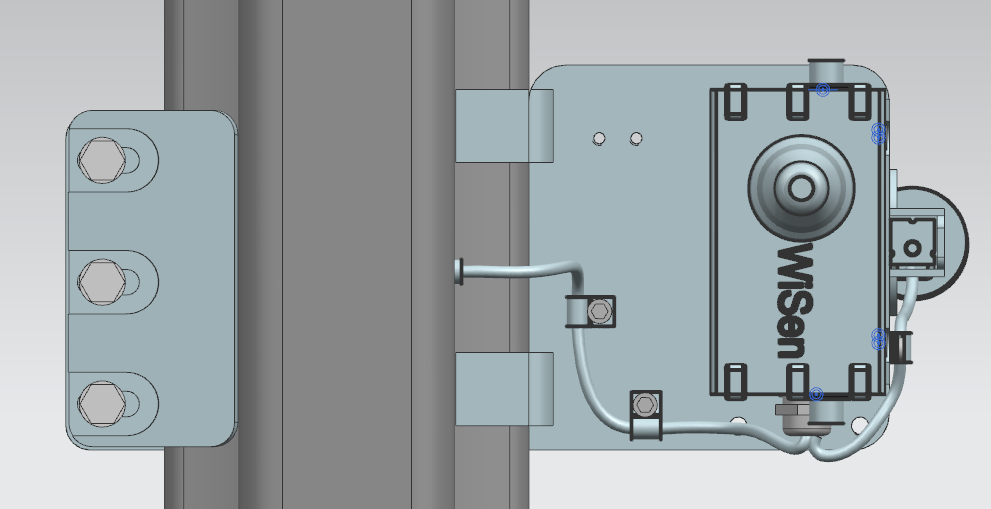

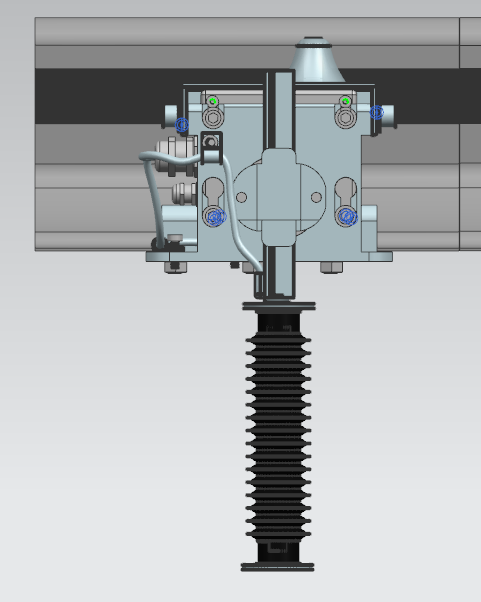

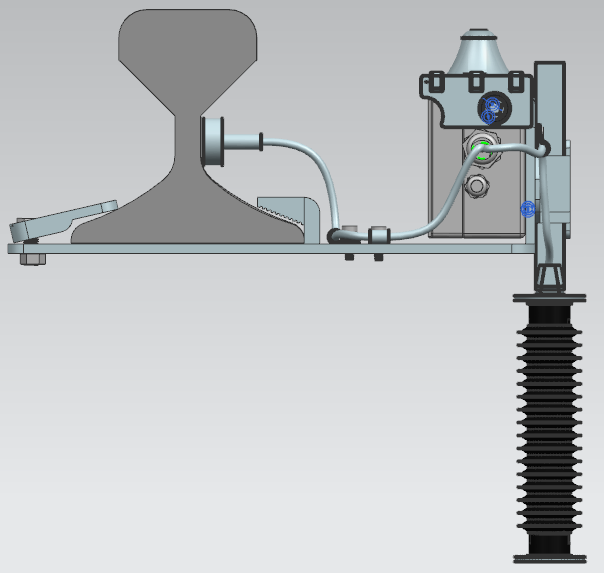

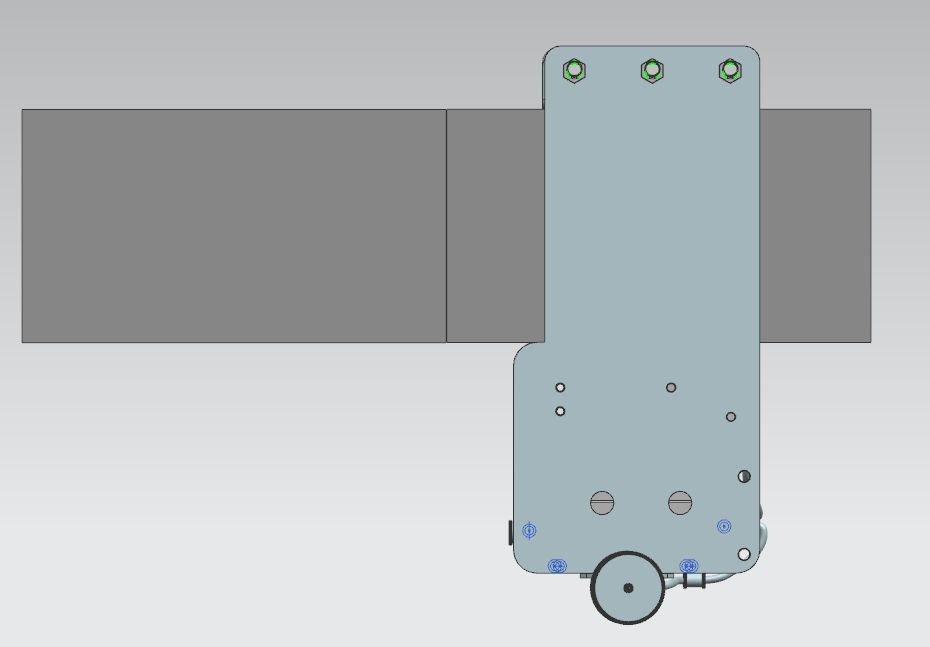

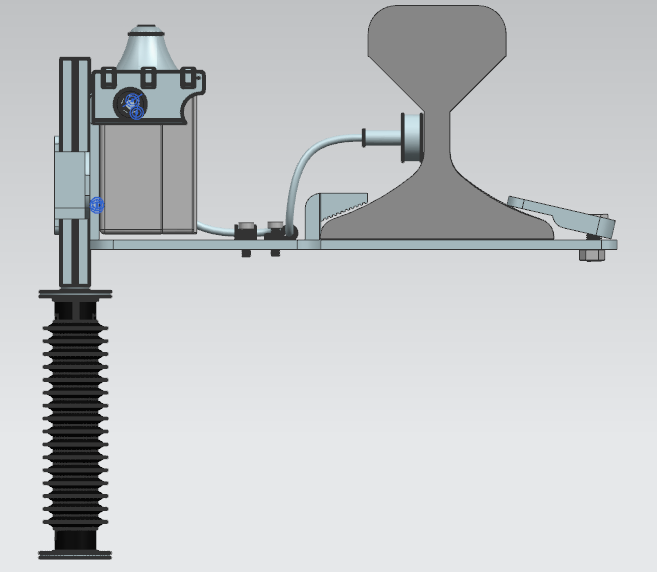

Applications: The unit is combined with: A. External displacement sensor, for railway track vertical movement or crack development; B. External temperature sensor, for railway track variation monitoring. A vibration threshold trigger value can be set on a node switch, so that once the vibration threshold is reached by any object, such as a train passes by, a node can sample at 33Hz rate, and report to a gateway of maximum, minimum, average over a time interval.

Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
Fire Proof:  Approved
Certificates:  CE, RoHS, REACH,Network Rail Approval (UK), London Underground Product Approval (UK)
ꁆ ꁇ
  •   1700 Type - WISENMESHNET® Displacement Sensor Node
     Basics
    Battery Power Qty. x 1 (3.6V Lithium primary D-Cell ER34615)
    Accuracy Stop Voltage 2.7VDC
    Mesh Stop Voltage 2.1VDC
    Battery Connection Standard Aluminium Battery Holder
    Working Current Max. 28mA (Typ. 9mA) @ Mode=0
    Alternative DC Input 3.6VDC
    Local Storage Min. 450 Messages during Meshing
    L x W x H 100 x 100 x 60mm
    Weight

    Node: 0.4kg

    Displacement Sensor (1.0m cable) + NTC temperature Sensor

    with strong magnet fixing (1.0m cable): 0.25kg
    Cable Gland

    Qty. 1 x EMC-CMA12 - Extend Power

    Qty. 1 x EMC-CMA16 – Displacement and Temperature Sensor
    Wire Connection Spring type wiring terminal
      WSN Interface
    Mesh Wireless Interface WISENMESHNET® Protocol
      External Primary Sensor
    Sensor Type External Displacement External NTC Temperature
    Range

                         0 to 50/100/150/200mm

                         Overload cause irreversible damage

    		 -40 to 85°C
    Accuracy 0.1%FS <1°C@[-40, 40]°C & <2°C@(40, 85]°C
    Resolution 0.0015%FS 0.1°C
      Standard System Parameter
    Internal Temperature Range: -40 to 85°C; Accuracy: ±1°C, typical: ±0.5°C; Resolution: 0.1°C
    Voltage Accuracy: ± 0.1V
      For Installation Brackets, please refer to https://www.wisencn.com/accessory



  • Common Information

    Type Specific

    Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • CE

    Others

  • Common Software

    Leica GeoMos Specific

    Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.
    WiSen® Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen® SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen® Standard Serial Port Monitoring Software.zip: Data communication via a gateway on a Windows PC;
    Please refer to "Technical Document" for instructions.
    WiSen Downloader Installer v1.2.0.msi: Software to integrate Wisen data into Leica GeoMoS.

1700 Type - Displacement Sensor Node

WiSenMeshNET® Product @ 2.4GHz Radio Frequency
