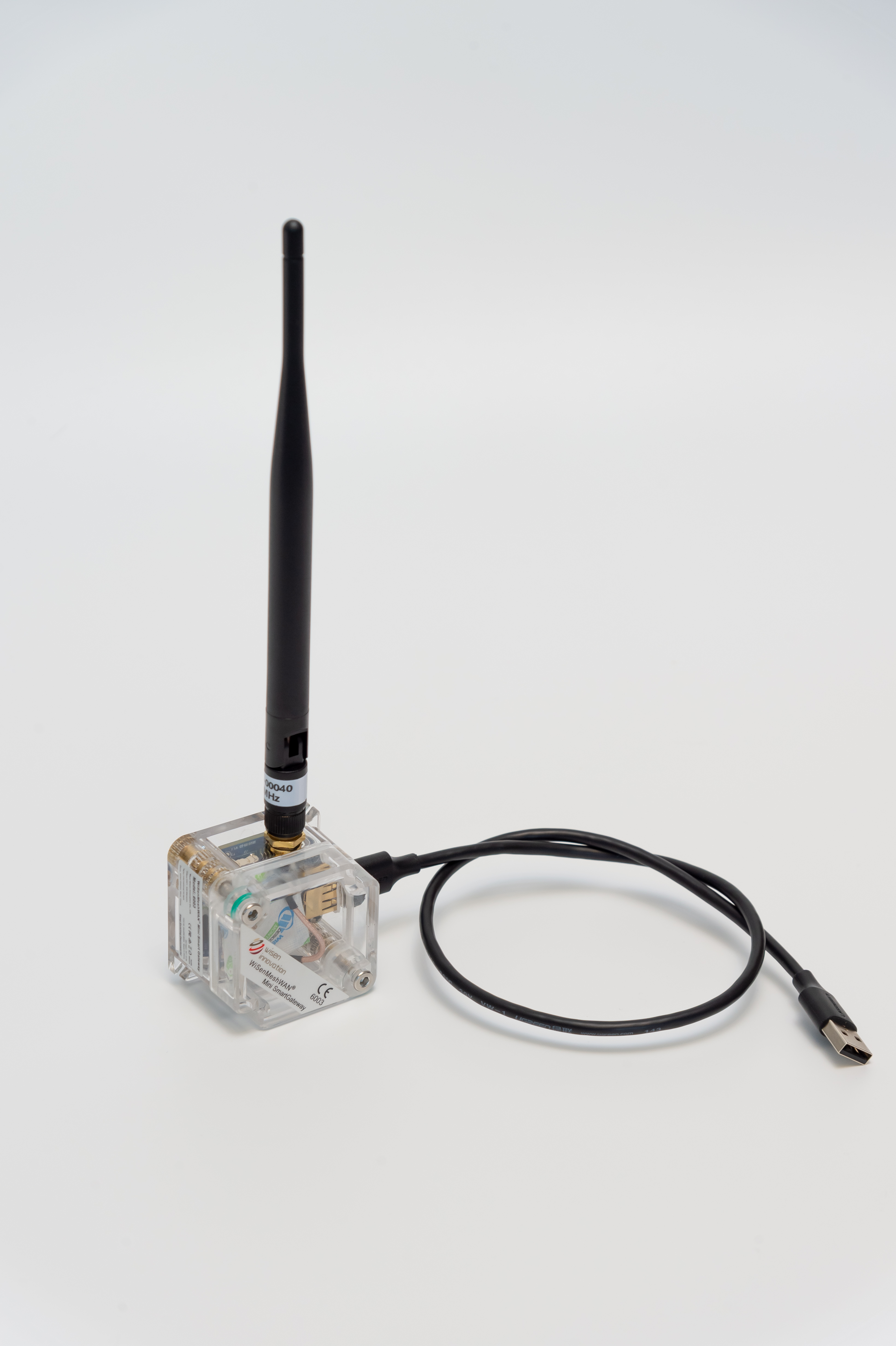

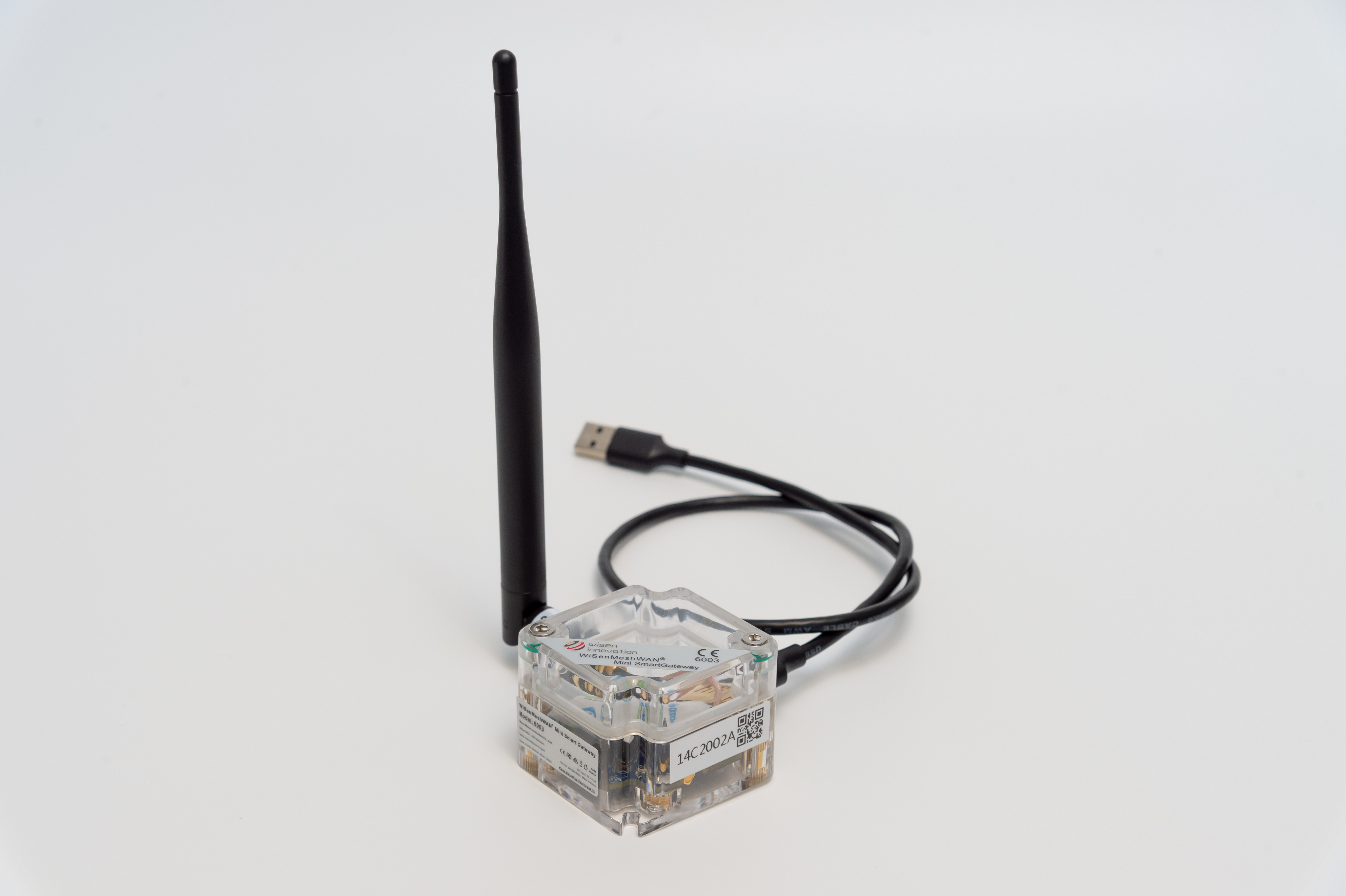

    A Mini gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T modifications) to and data collection from all the nodes involved in a mesh network; Via a USB, a Mini gateway connects to a Windows PC, which runs Wisen Standard Serial Port Software. With the latest “Wisen Standard Serial Port Software” V3.0.11 or above (under “WiSen Utility Software Centre”, located in “/Technical Support” on the Wisen Web Platform), a Mini gateway can automatically:

        A.    Upload mesh data to Wisen Visualisation Platform;

        B.    Download remote commands from Wisen Visualisation Platform.

    WHEN:

        A.    “Auto Upload” Option is enabled on Wisen Standard Serial Port Software;

        B.    The Windows PC is enabled to access internet.


Casing and Painting Materials:  PC
Operating Temperature:  -40 to 85°C
*Purchasable from Leica Geosystem

  • Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • FCC

    ACMA Certified

    CE

    Others

  • Common Software

    WiSen@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
    TCP/IP Software: Data communication between a gateway and 3rd Party Server of a fixed public IP.     Note: Please refer to "Technical Document" for further instructions, at WiSen® Visualisation Platform.

    Leica GeoMos Specific

    Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.

ꁆ ꁇ

6003 Type - Mini Smart Gateway

WiSenMeshWAN® Product @ 915, 868, 433MHz Radio Frequency
