   A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T modifications) to and data collection from all the nodes involved in a mesh network; Meanwhile, it forwards the data and system information to the remote server via mobile network or the local server via standard RS232 connections.



   For the extended public communication range between “Smart Gateway or Stand Alone Units” and the remote server clouds, please refer to “3200: Data Transmission Unit”.


Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
Fire Proof:  Approved
*Purchasable from Leica Geosystem
ꁆ ꁇ

  • Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • FCC

    ACMA Certified

    CE

    Others

  • Common Software

    WiSen@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
    TCP/IP Software: Data communication between a gateway and 3rd Party Server of a fixed public IP.     Note: Please refer to "Technical Document" for further instructions, at WiSen® Visualisation Platform.

    Leica GeoMos Specific

    Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.

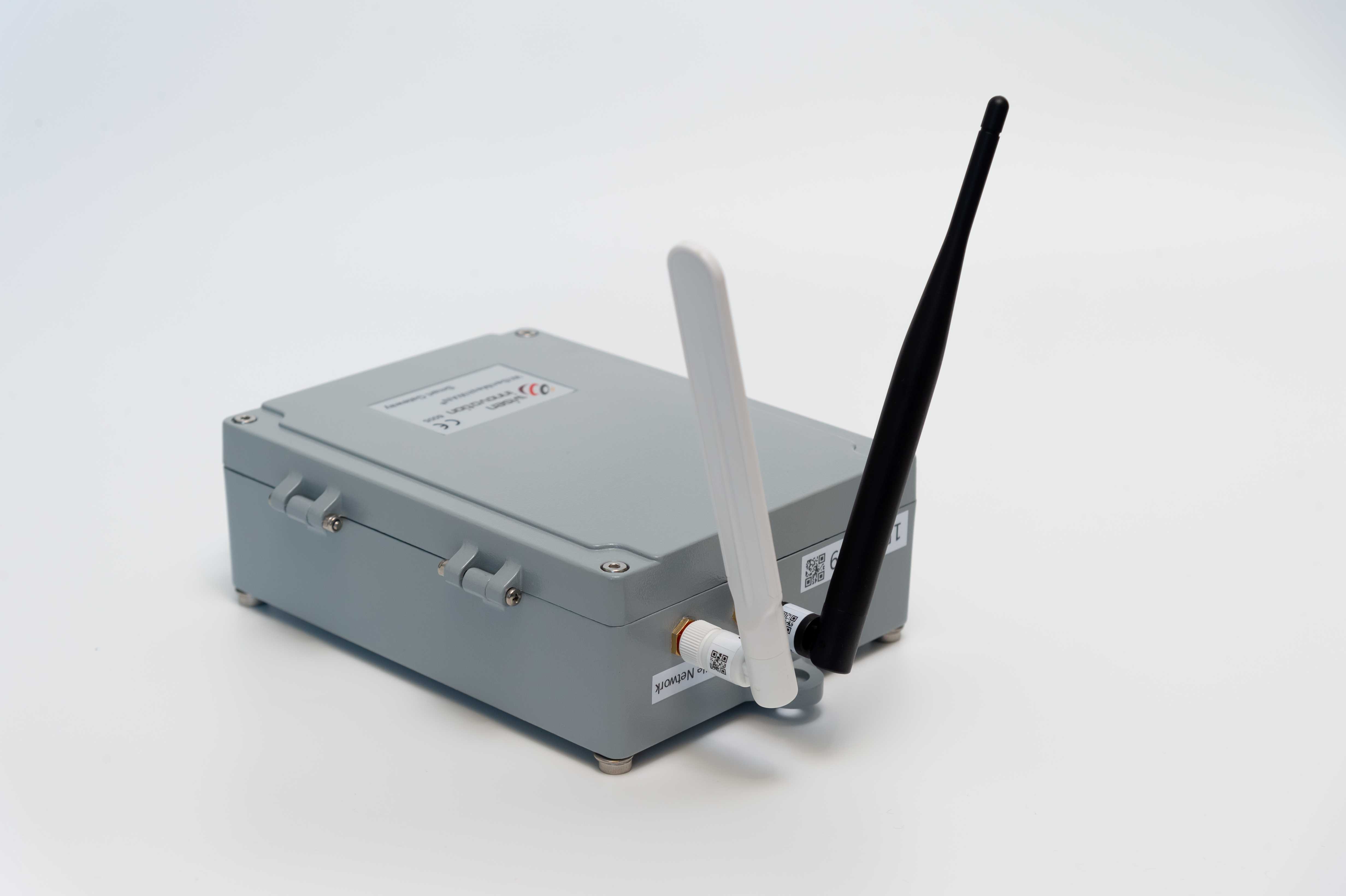

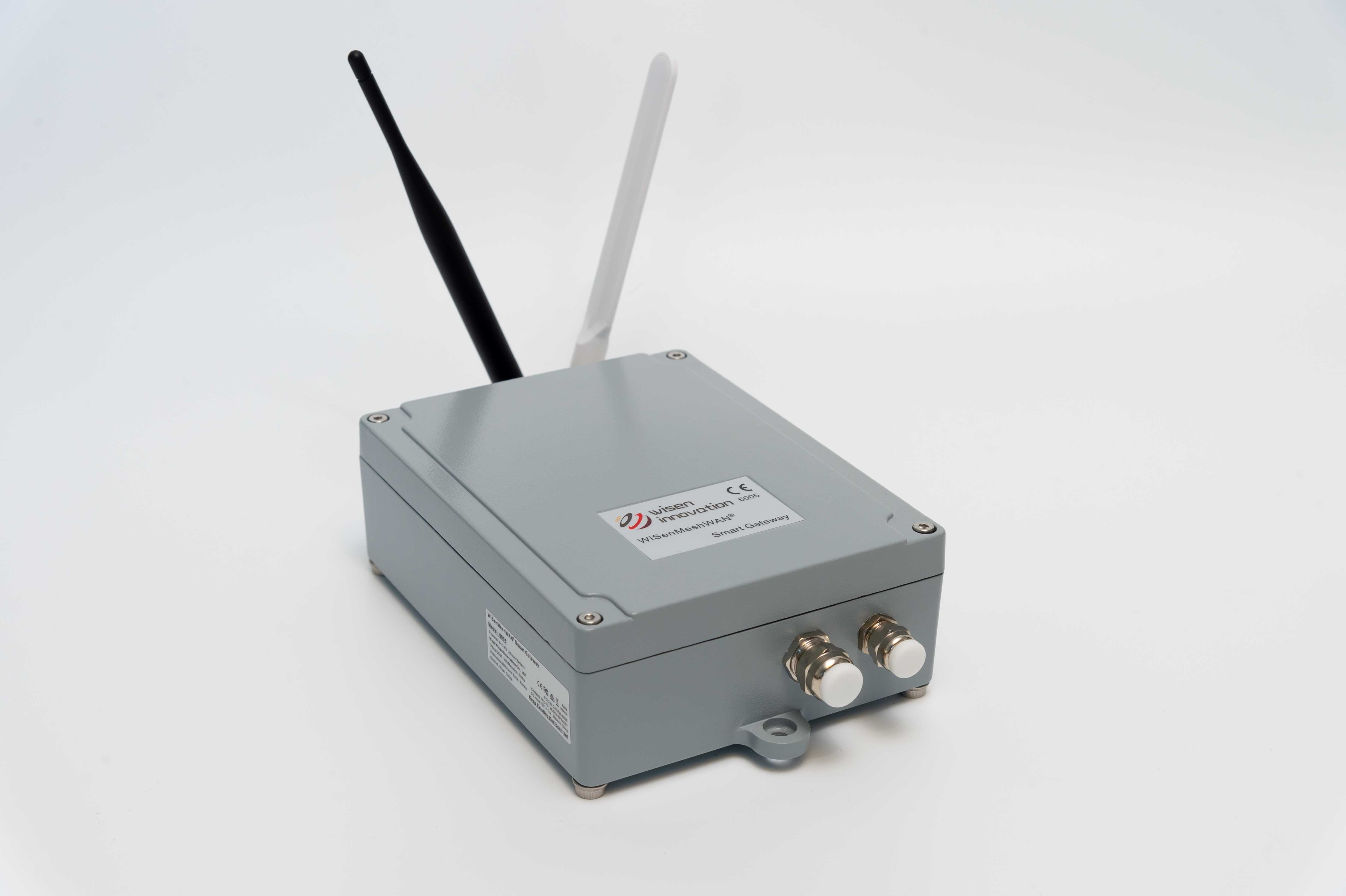

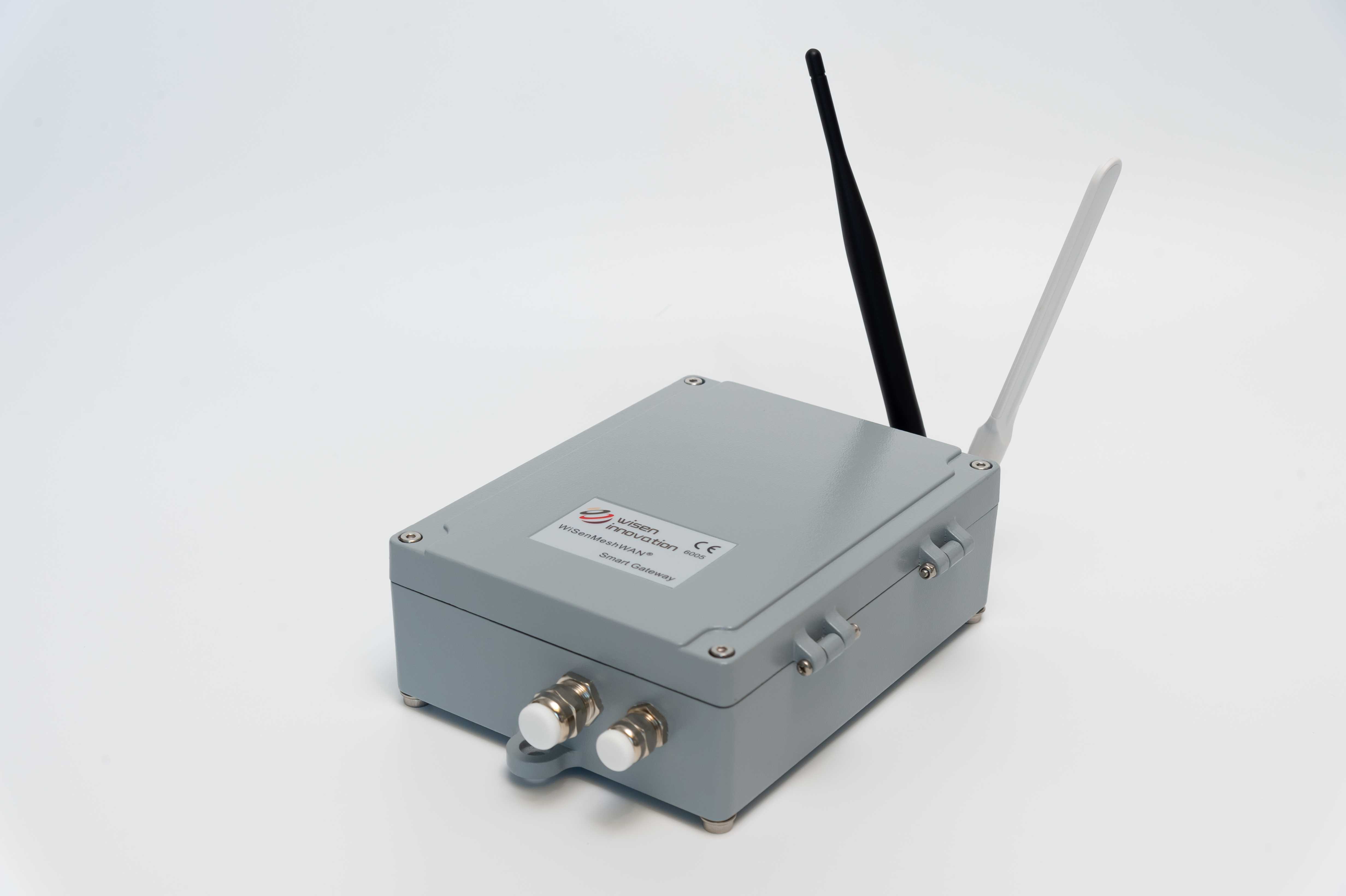

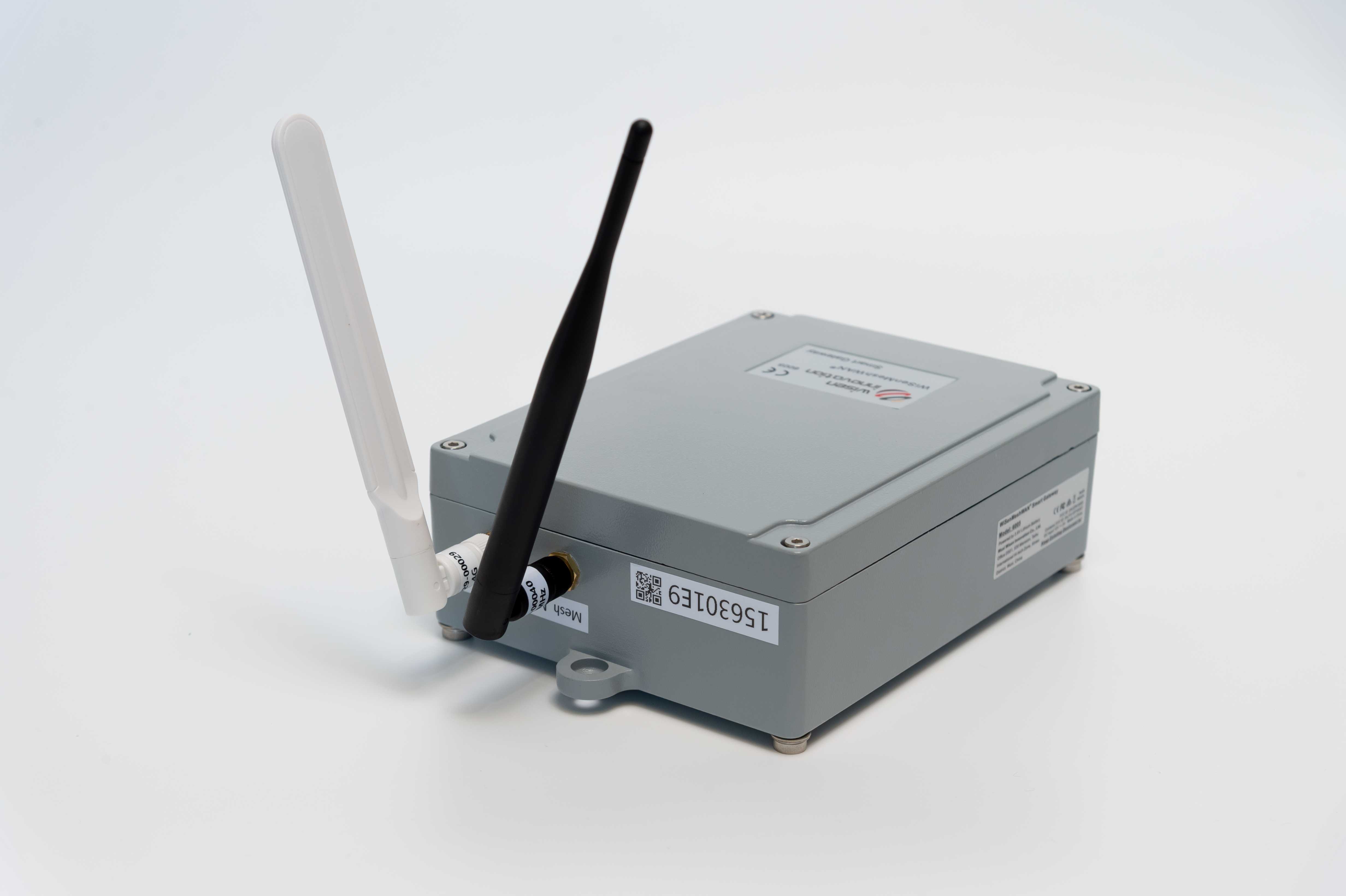

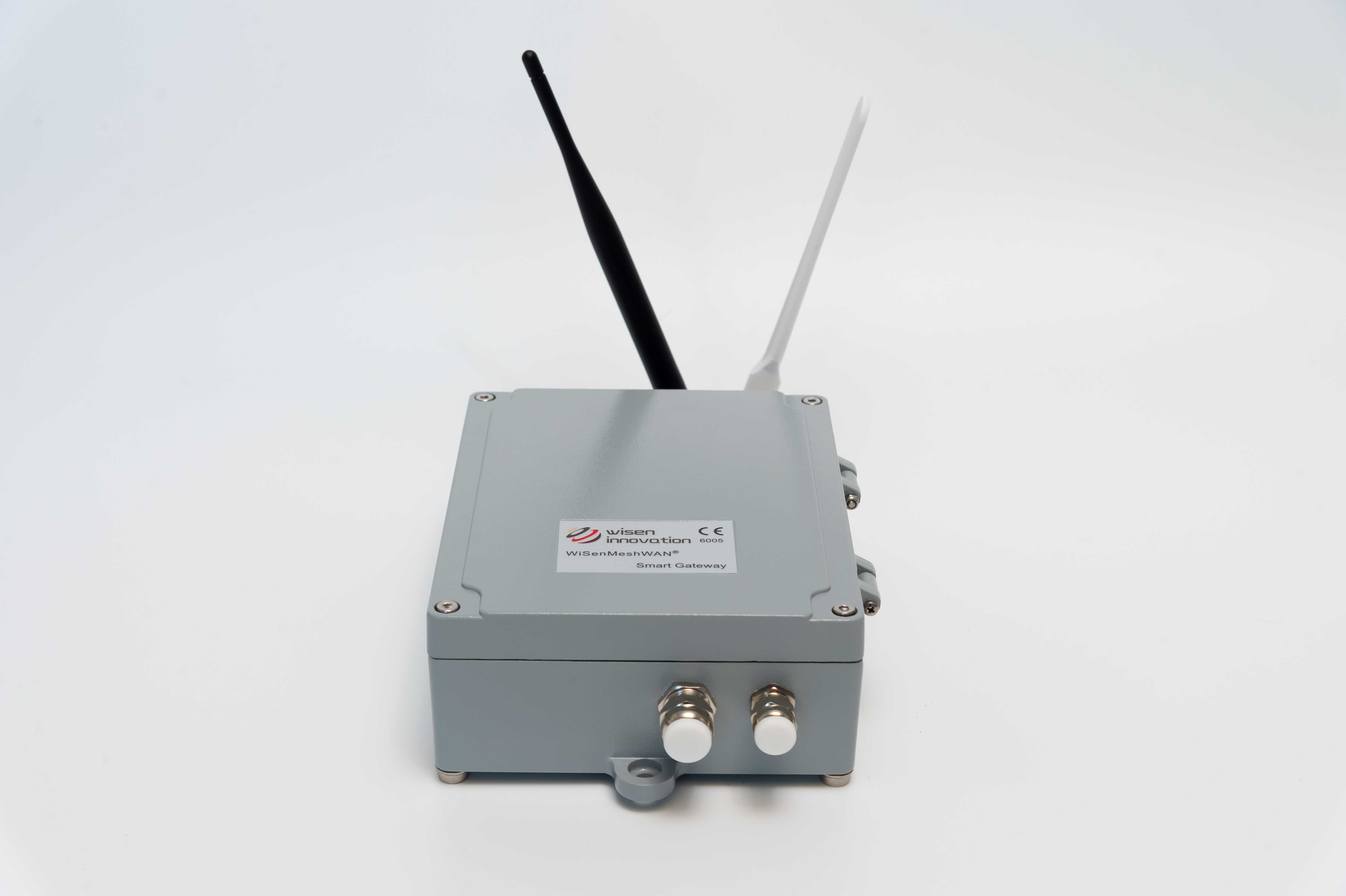

6005 Type - Smart Gateway (C-Type)

WiSenMeshWAN® Product @ 915, 868, 433MHz Radio Frequency
