        Infrastructure tilting condition monitoring, such as retaining wall, supporting column, river embankment etc. From the 1st level of data conversion, the movement of one end of a beam/crossbar can be monitored, such as land sliding, railway track monitoring.



        With our latest developed mathematical model, we can achieve the Horizontal Convergence of a metro tunnel of 6 segments.



        Wireless tilt beam sensor: Furthermore, Omni Tilt Sensor Nodes are also designed to be installed on rigid beam fixing brackets, where: multiple number of beams are inner connected to form a chainage of highly accurate tilt beams for settlement monitoring. Note: the beams are ranged from 1.0m, 2.0m and 3.0m.


Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
Fire Proof:  Approved

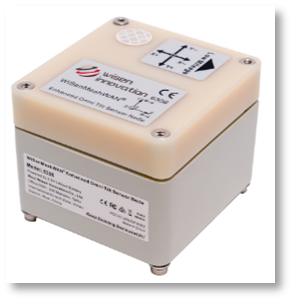

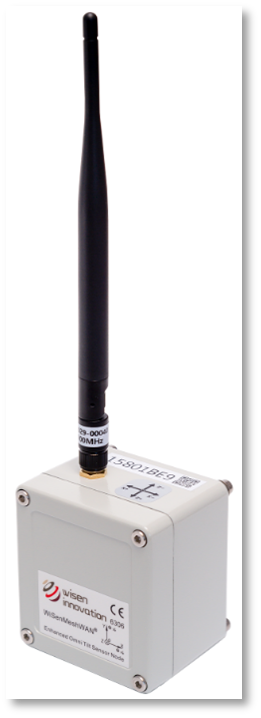

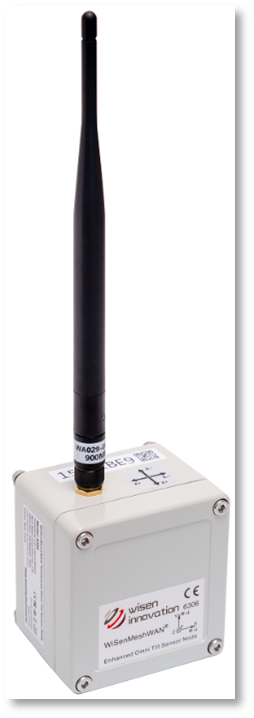

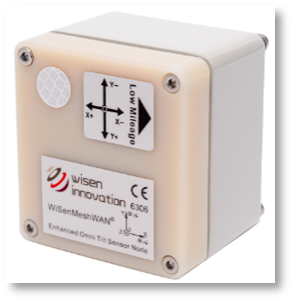

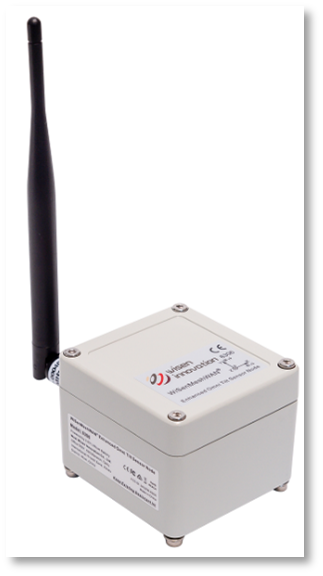

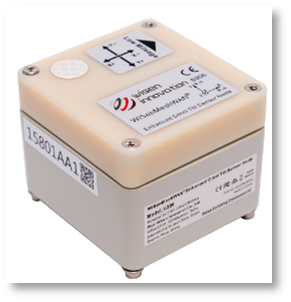

6305/6306 Type - Omni Tilt Sensor Node

WiSenMeshWAN® Product @ 915, 868, 433MHz Radio Frequency

  • Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • FCC

    ACMA Certified

    CE

    Others

  • Common Software

    WiSen@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
    TCP/IP Software: Data communication between a gateway and 3rd Party Server of a fixed public IP.     Note: Please refer to "Technical Document" for further instructions, at WiSen® Visualisation Platform.

    Leica GeoMos Specific

    Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.
