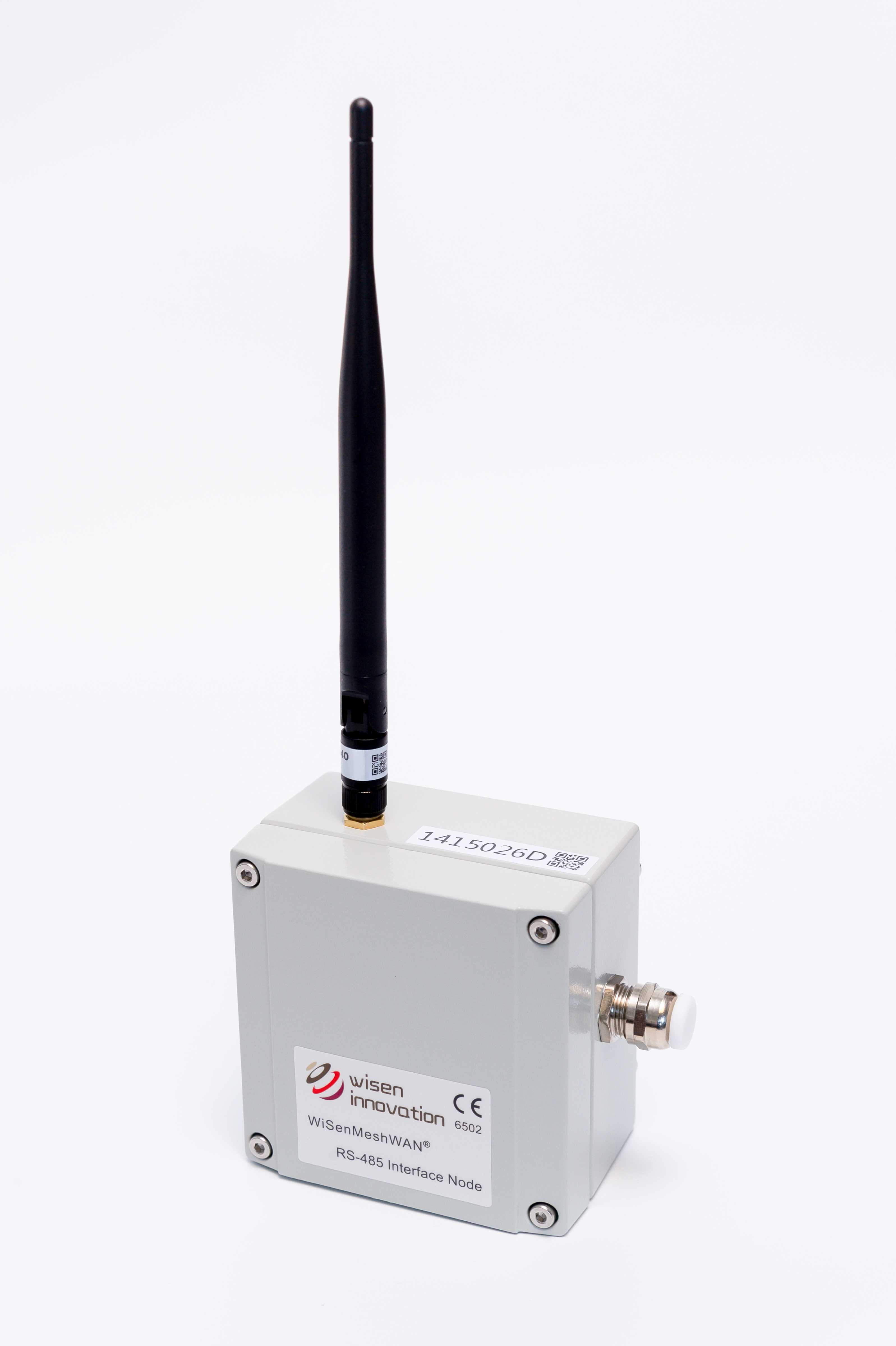

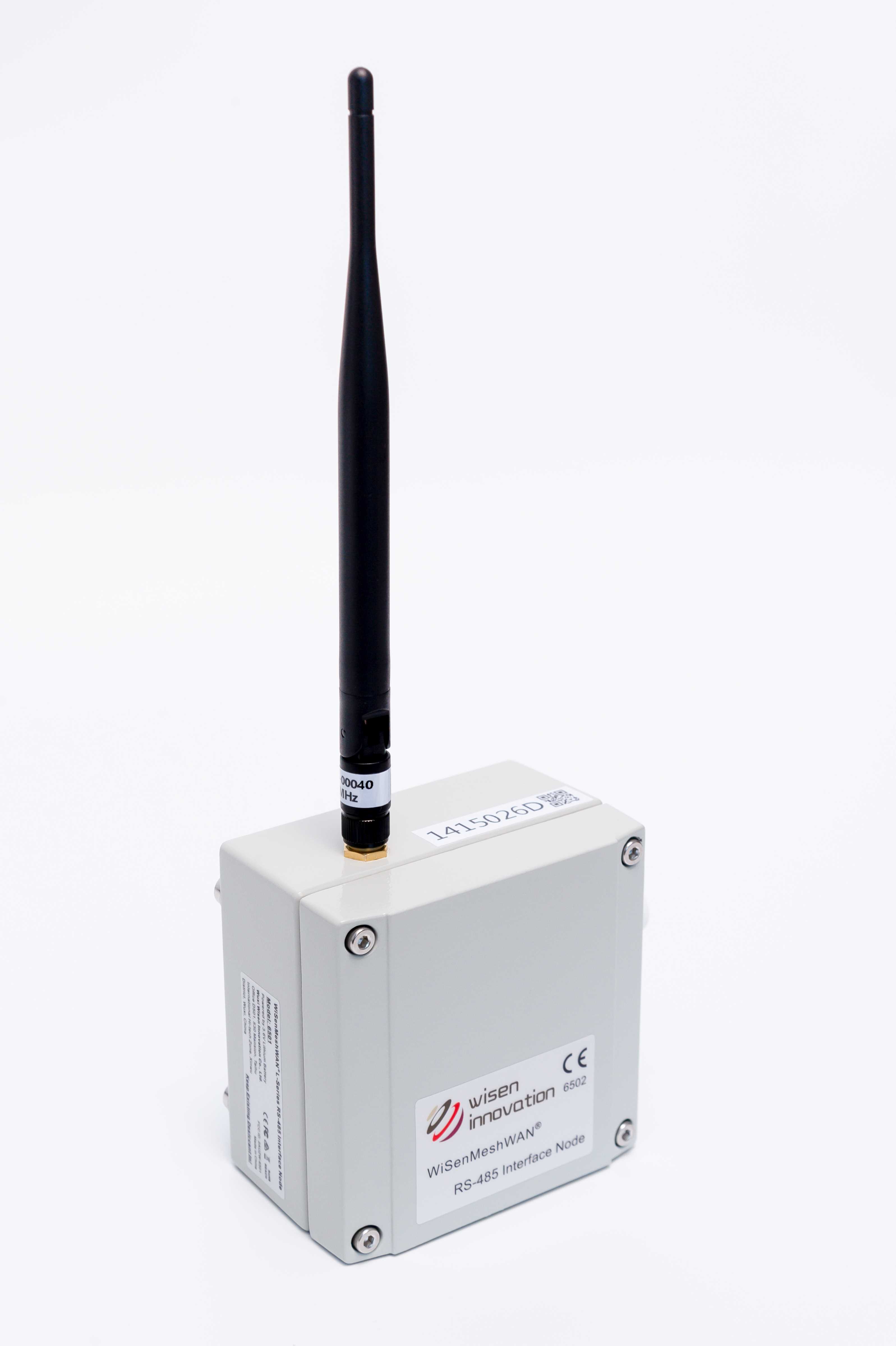

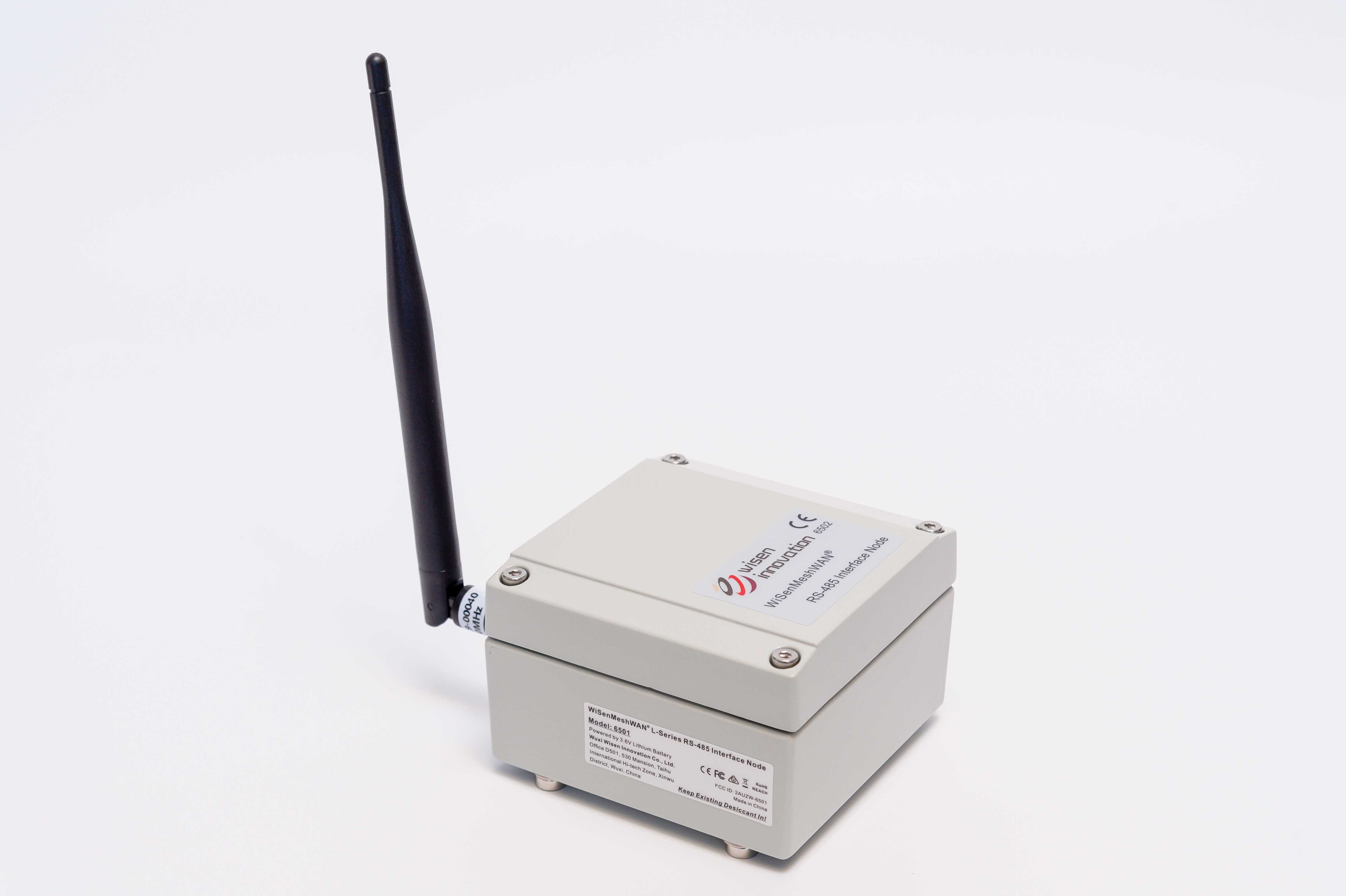

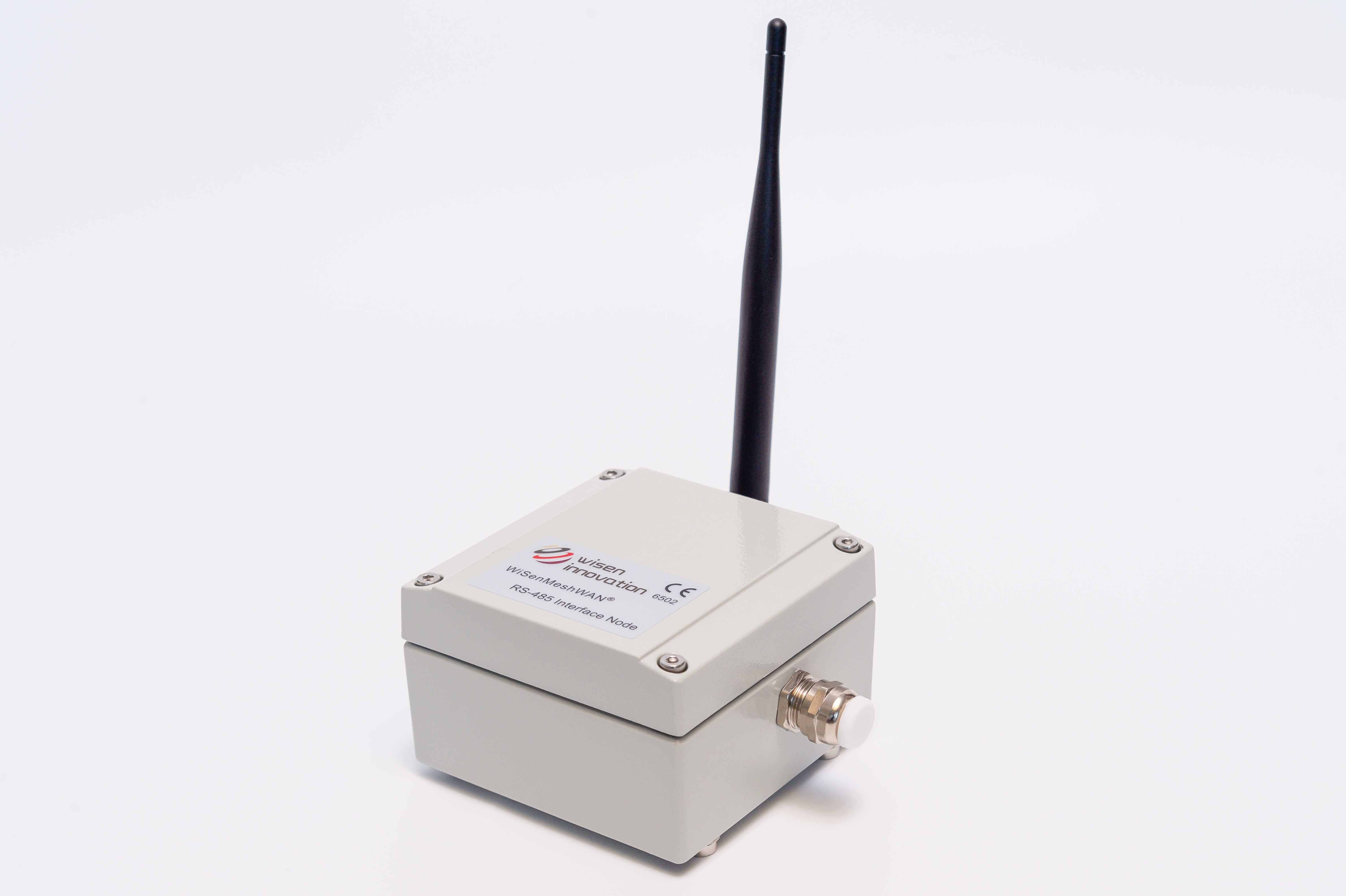

Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C / -10 to 50°C / -40 to 85°C (excluding rainfall sensor)
Fire Proof:  Approved
Certificates:  CE, FCC, ACMA, RoHS, REACH
*Purchasable from Leica Geosystem
  •   6501 Type - WiSenMeshWAN® Liquid Level Settlement Sensor Node
     Basics
    Battery Power Qty. x 1 (3.6V Lithium primary D-Cell ER34615)
    Accuracy Stop Voltage 2.7VDC
    Mesh Stop Voltage 2.1VDC
    Battery Connection Standard Aluminium Battery Holder
    Working Current (DC) Max. 160mA (Typ. 100mA)
    Local Storage Min. 450 Messages during Meshing
    L x W x H

    Interface Node: 100 x 100 x 60mm

    Liquid level settlement sensor: depending on the measurement range in mm.
    Node Weight 0.45kg
    Sensor Weight

    Range: 100mm, Approx. 3kg; Range: 200mm, Approx. 4kg;

    Range: 300mm, Approx. 5kg.(Excluding the brackets and liquid tubes)
      Primary Sensor
    Sensor Type Vertical Settlement
    Range 100/200/300/400/500mm
    Accuracy 1.0mm (Typical 0.5mm)
    Resolution 0.001mm
      Standard System Parameter
    Temperature Range: -40 to 85°C; Accuracy: ±1°C, Resolution: 0.1°C
    Voltage Accuracy: ± 0.1V
      WSN Interface
    Mesh Wireless Interface WiSenMeshWAN® Protocol
      Applications

    Ground settlement monitoring: A minimum of two settlement sensor nodes are applied, with one as the reference point and other(s) as the vertical movement measurement point.

         Sensor compatible: http://www.bsil.com.cn/en
      Product 2D Show
      For Installation Brackets, please refer to https://www.wisencn.com/accessory



      6510 Type - WiSenMeshWAN® 4-Channel Laser Distance Sensor Node
     Basics
    Battery Power Qty. x 4 (3.6V Lithium primary D-Cell ER34615)
    Accuracy Stop Voltage 2.7VDC
    Mesh Stop Voltage 2.1VDC
    Battery Connection Standard Aluminium Battery Holder
    Working Current Max. 380mA (Typical: 150mA)
    Alternative DC Input 3.6VDC or 7-32VDC@Min. 1A
    Local Storage Min. 450 Messages during Meshing
    L x W x H

    4 Channel Interface Node: 180 x 140 x 60mm;

    Laser Distance Unit: 80 x 75 x 57mm
    Node Weight 1.3kg
    Laser Distance Unit

    0.37kg x Qty. 4 (excluding brackets and cables)

    Default cable length: 0.5m (800m when high quality shield cable is used.)
    Cable Gland Qty. 4 x EMC-CMA12
    Wire Connection Spring type wiring terminal
      Primary Sensor
    Sensor Type Distance
    Laser Class Class 2
    Laser Range 0.05m-33m
    Laser Accuracy Better than ±1.0mm (Typical 0.5mm)
    Laser Resolution 0.1mm
    Laser Lens Durability ≥ 500Hrs@3Hz@50°C or 2500Hrs@3Hz@25°C
      Standard System Parameter
    Temperature Range: -40 to 85°C; Accuracy: ±1°C, typical 0.5°C; Resolution: 0.1°C
    Voltage Accuracy: ± 0.1V
      WSN Interface
    Mesh Wireless Interface WiSenMeshWAN® Protocol
      Sensor Output Voltage

    “Vcc_Out Hardware Switch” is used to control the Vcc_out voltage to be 5V, 9V and 12V cross all 4 channels simultaneously.

      However, for 6510 type, 12V must be used as power supply voltage to the laser sensors.

    Hardware Switch

    		 Vcc_Out Output Demo Photo
    0 5V
    1 9V
    2 12V (Default)
    3 5V


    Table. Vcc_Out Switch Setting.
      Applications

    4 sets of laser sensors can be hosted in this product, each can be used for long term distance monitoring between two specific points, such as horizontal convergence of a tunnel.

    Note:

            1. Vcc_Out Switch must be set as Switch = 2, i.e., 12V for the laser sensors to work;

               2. It does not contain any tilt readings as in 6Fxx laser tilt series.
      For Installation Brackets, please refer to https://www.wisencn.com/accessory



      6517 Type - WiSenMeshWAN® Weather Sensor Node
     Basics
    Battery Power Qty. x 4 (3.6V Lithium primary D-Cell ER34615)
    Accuracy Stop Voltage 2.7VDC
    Mesh Stop Voltage 2.1VDC
    Battery Connection Standard Aluminium Battery Holder
    Working Current Max. 570mA (Typ. 210mA). Note: External 12VDC is strongly recommended.
    Alternative DC Input 3.6VDC or 7-32VDC@min. 1A
    Local Storage Min. 450 Messages during Meshing
    L x W x H

    4 Channel Interface Node: 180 x 140 x 60mm

    Sensor: 600 x 300 x 250mm
    Node Weight 1.3kg
    Sensor Weight 3.0kg
    Cable Gland Qty. 4 x EMC-CMA12
    Wire Connection Spring type wiring terminal
      Primary Sensor
    Channel Choice CH2 ONLY CH4 ONLY
    Sensor Type Temperature Humidity Light Intensity Air Pressure Noise Level Wind Speed Wind Direction Rainfall/T
    Range -40~100°C 0~100%RH 0~200000Lux 30~1100hPa 30~130dB 0~45m/s 0~359° 0~6553.5mm/T
    Accuracy ±0.3°C ±3%RH ±4%F.S. ±1hPa ±3dB ±(0.3+3%xSpeed) m/s ±3° ±1mm
    Resolution ±0.1°C 0.1%RH 1Lux 0.11hPa 0.1dB 0.1m/s 1° 0.2mm
      Standard System Parameter
    Temperature Range: -40 to 85°C; Accuracy: ±1°C; Resolution: 0.1°C
    Voltage Accuracy: ± 0.1V
      WSN Interface
    Mesh Wireless Interface WiSenMeshWAN® Protocol
      sensor Output Voltage

      “Vcc_Out Hardware Switch” is used to control the Vcc_out voltage to be 5V, 9V and 12V cross all 4 channels simultaneously.

        However, for 6517 type, 12V must be used as power supply voltage to weather sensors.


    Hardware Switch Vcc_Out Output Demo Photo
    0 5V
    1 9V
    2 12V (Default)
    3 5V

    Table. Vcc_Out Switch Setting.
      Applications

    Outdoor Long term multi meteorological parameters monitoring, including: Temperature, Humidity, Light Intensity, Air Pressure, Noise Level, Wind Speed, Wind Direction and Rainfall per T.
    Note:
            1. CH2 must be connected with the combined weather sensors; CH4 must be connected with the rainfall sensor;
            2. Vcc_Out Switch must be set as Switch = 2, i.e., 12V for the weather sensors to work.
      For Installation Brackets, please refer to https://www.wisencn.com/accessory



  • Common Information

    Type Specific

    Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • FCC

    ACMA Certified

    CE

    Others

  • Common Software

    Leica GeoMos Specific

    Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.
    WiSen® Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen® SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen® Standard Serial Port Monitoring Software.zip: Data communication via a gateway on a Windows PC;
    Please refer to "Technical Document" for instructions.
    WiSen Downloader Installer v1.2.0.msi: Software to integrate Wisen data into Leica GeoMoS.
