6A07/6A08/6A09-WiSenMeshWAN

넳 넲

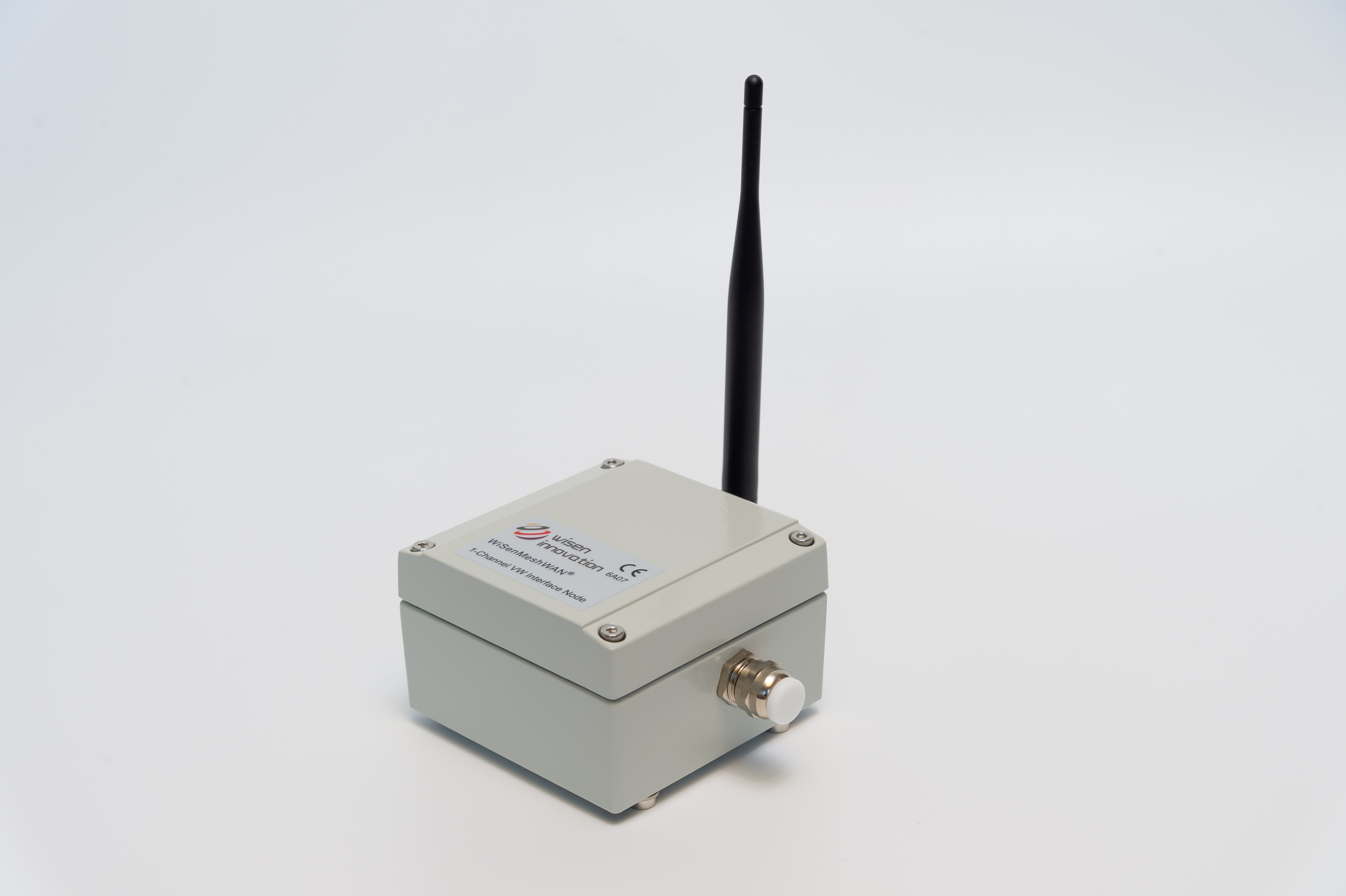

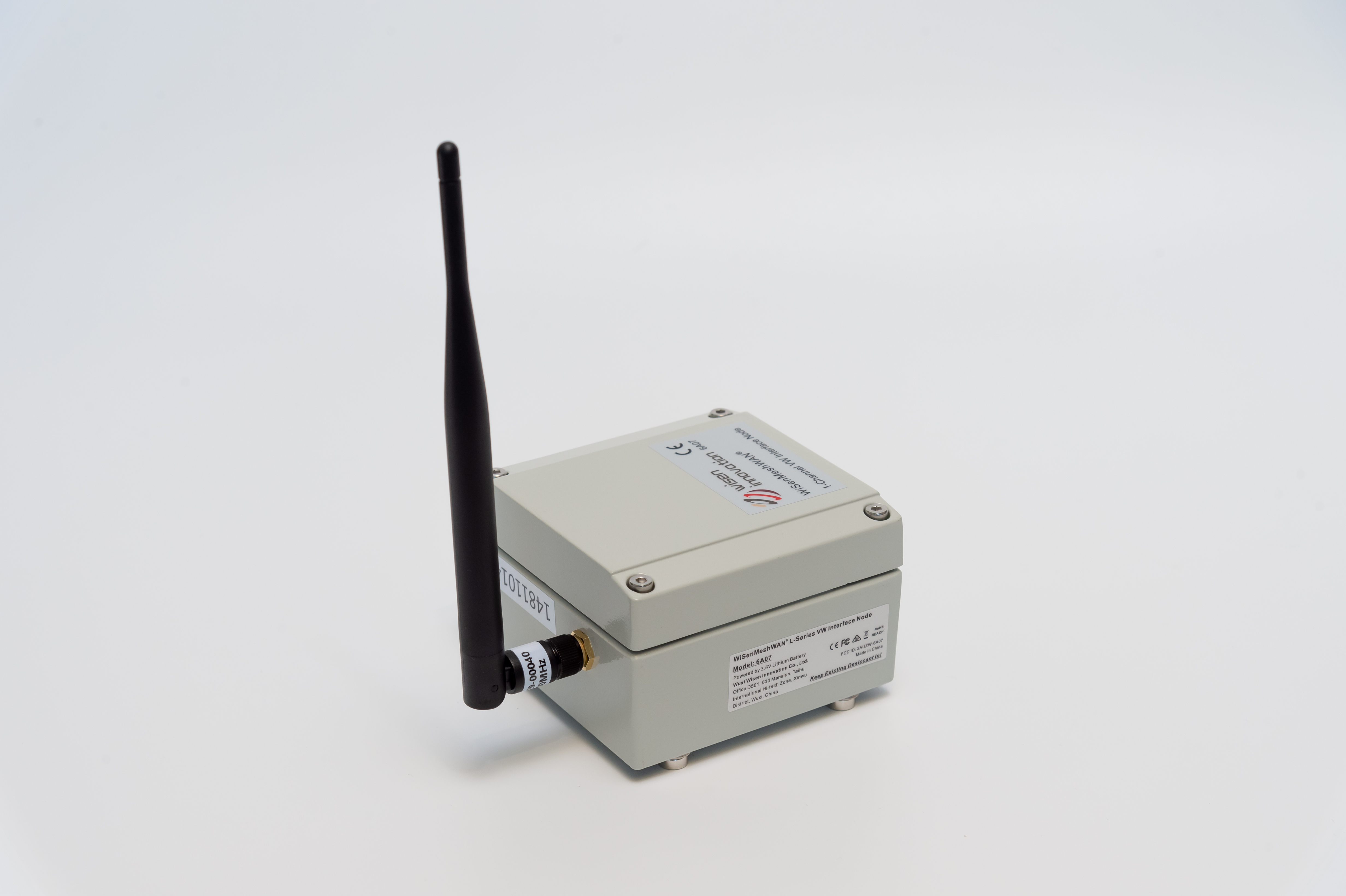

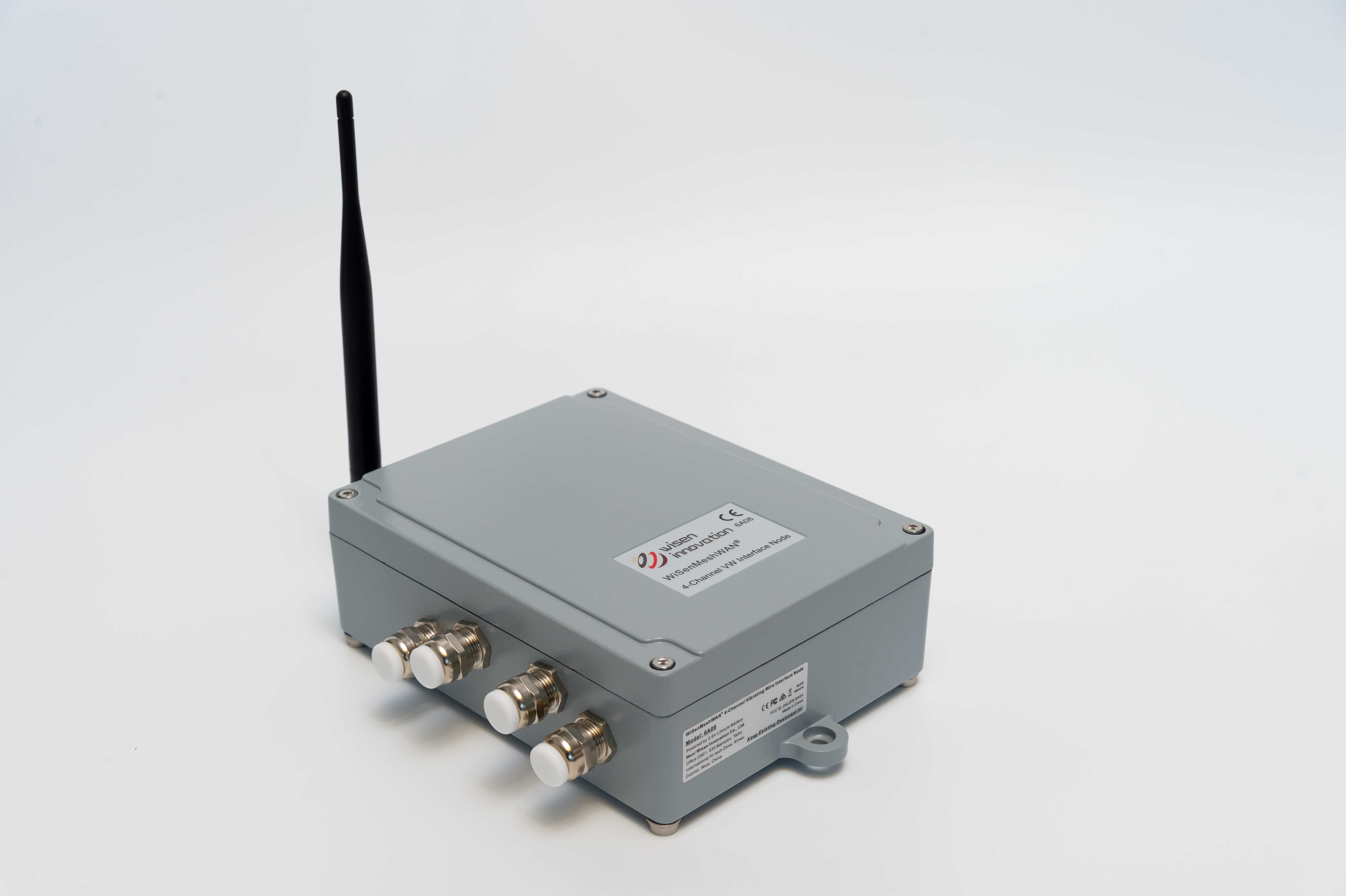

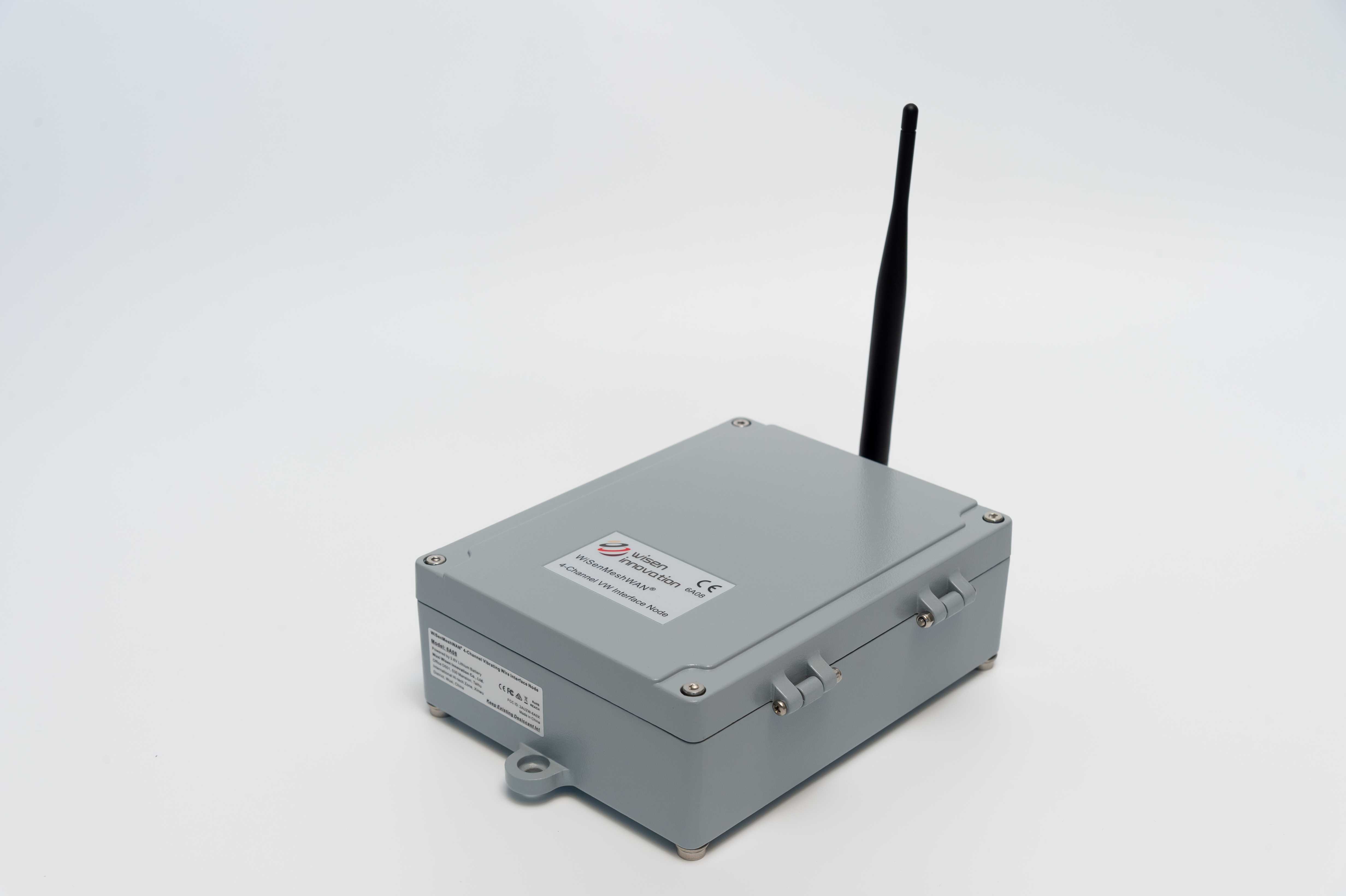

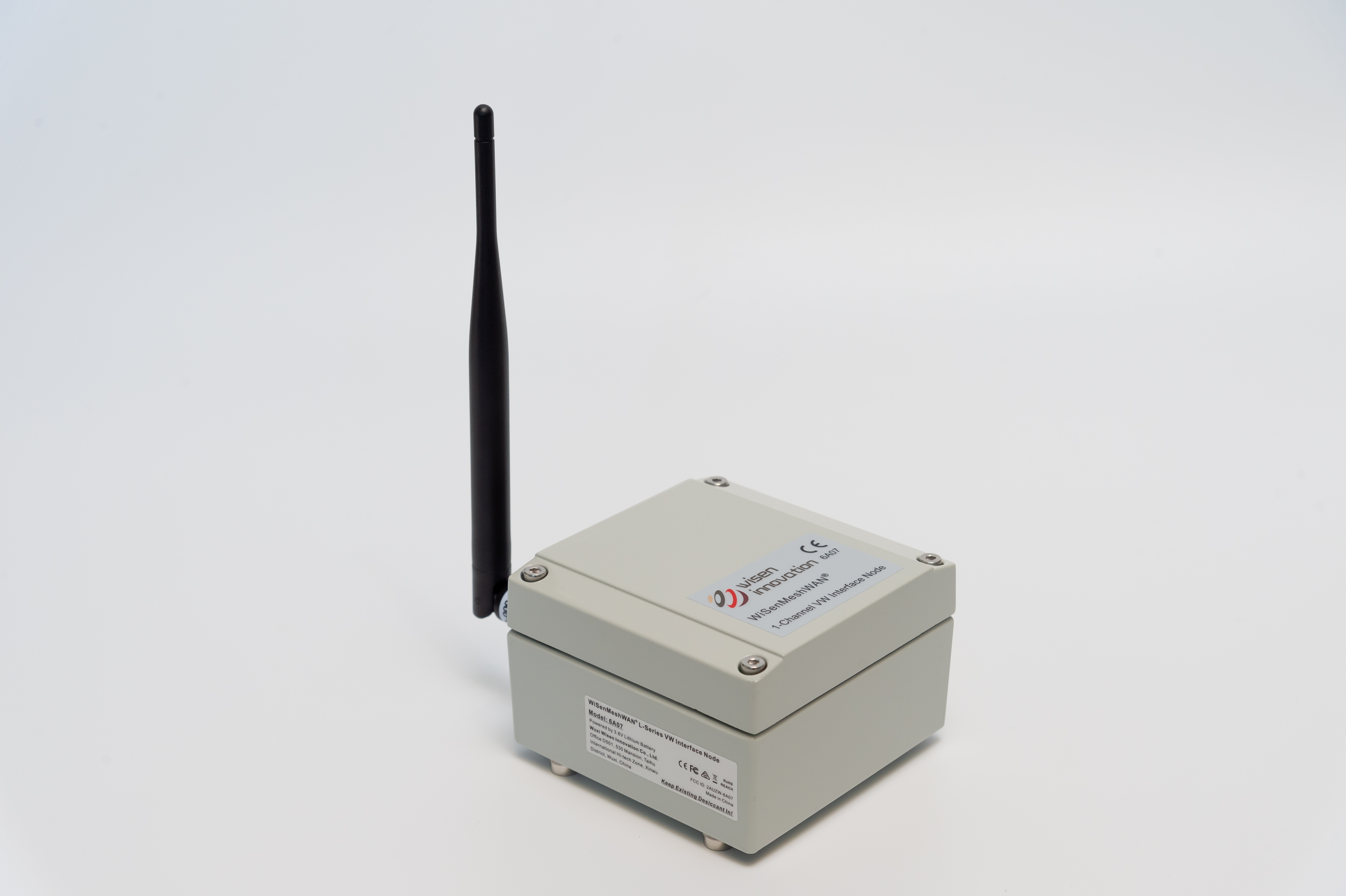

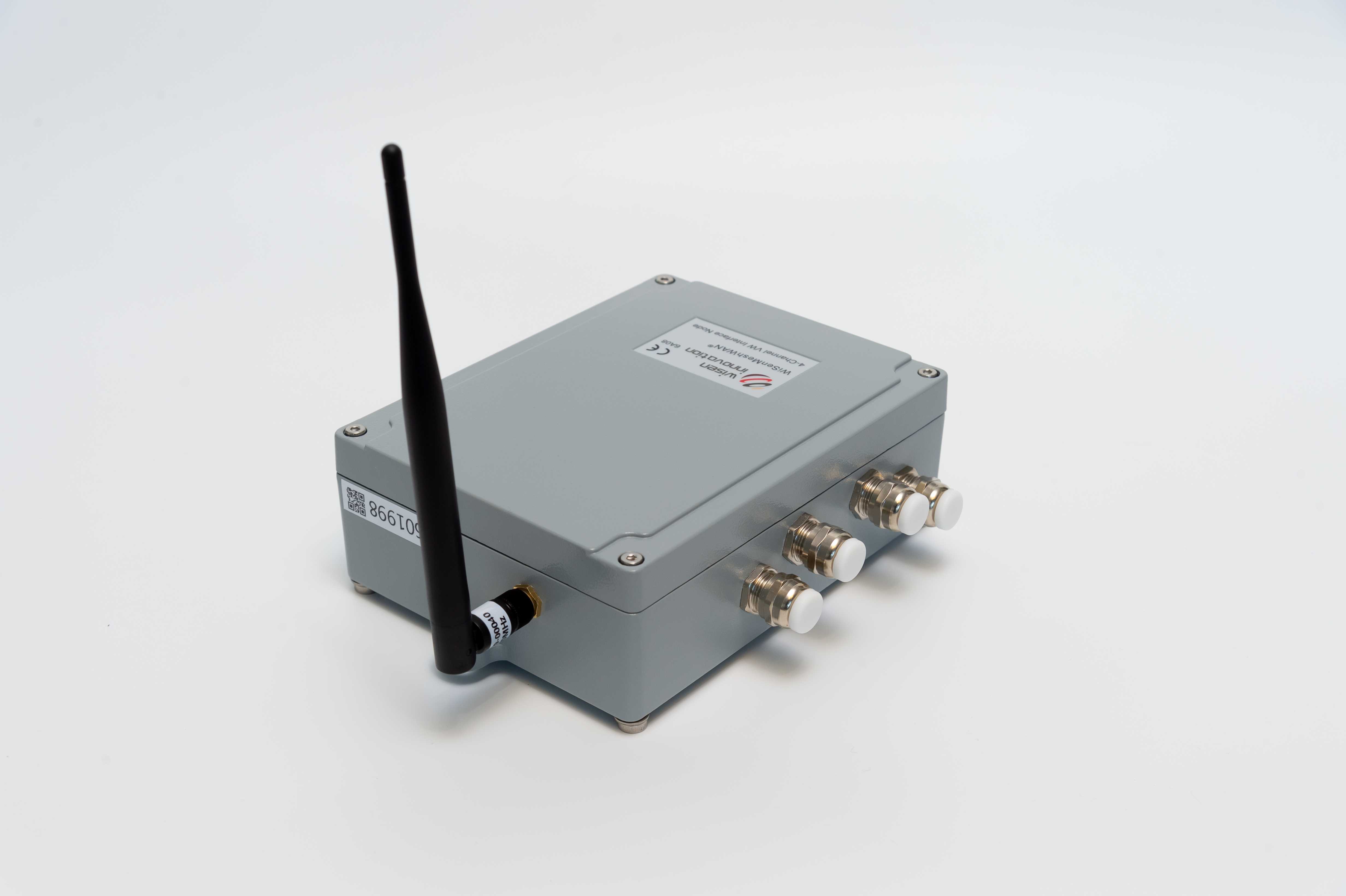

WiSenMeshWAN® VW interface node is Compatible with all different brands & types of high quality Vibrating Wire sensors, therefore it can be applied in all different related monitoring projects. Examples of VW sensors: Strain Gauge; Displacement Transducers; Piezometers; Settlement Sensors; Pressure Cells; Load Cells. Suggested VW sensor supplier: http://www.soilinstrument.com/

Note: For the conversion from a “Hz reading” to an actual reading with meaningful unit (e.g., water pressure kPa, strain uε, displacement in mm), please read “Virtual Node Creation Procedures on Wisen Web Platform” in the Appendix.


Casing and Painting Materials:	Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:	>= IP66
Operating Temperature:	-40 to 85°C
Fire Proof:	Approved
*Purchasable from Leica Geosystem

Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.
FCC

ACMA Certified

CE

Others
2021-10-13 10-FCCSDOC-6A08-Certificate_STS2107059EF.pdf

604 292.34 KB

2021-10-13 10-FCCID-6A08-TCB-DTS-TC163340.pdf

574 164.67 KB

2021-10-13 9-FCCSDOC-6A07-Certificate_STS1911154E.pdf

567 301.17 KB

2021-10-13 9-FCCID-6A07-TCB-P19SZ12016 DTS FCC ID 2AUZW - Final Certificate.pdf

563 342.93 KB
2021-10-19 CE3-6A07-Certificate_STS2109129RE_DOC.pdf

556 346.24 KB

2021-10-13 10-6A0X-Certificate_STS2010076RE_VOC.pdf

577 327.38 KB
2021-10-13 RoHS Certificate.pdf

918 347.57 KB

2021-10-13 REACH Certificate.pdf

1008 347.71 KB
Common Software

WiSen^@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
WiSen^@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
WiSen^@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
TCP/IP Software: Data communication between a gateway and 3^rd Party Server of a fixed public IP. Note: Please refer to "Technical Document" for further instructions, at WiSen^® Visualisation Platform.

Leica GeoMos Specific

Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen^® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.
