        WisenMeshWAN® 4-20mA/1-5V Interface Node is compatible with all different types of 4-20mA and 1-5V analogue sensors that can accept:

        - Power Voltage: between 2.5V and 12.0V;

        - Current Consumed: ≤ 50mA.


Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
ꁆ ꁇ

  • Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

  • Please contact support@wisencn.com for further information.

  • Common Software

    WiSen@ Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen@ SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen@ Utility Software Centre.zip: including Serial Por Software: Data communication between a gateway and a Windows PC via a cable;
    TCP/IP Software: Data communication between a gateway and 3rd Party Server of a fixed public IP.     Note: Please refer to "Technical Document" for further instructions, at WiSen® Visualisation Platform.

    Leica GeoMos Specific

    Leica - WiSen Downloader: Software to integrate Wisen data into Leica GeoMos. Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.

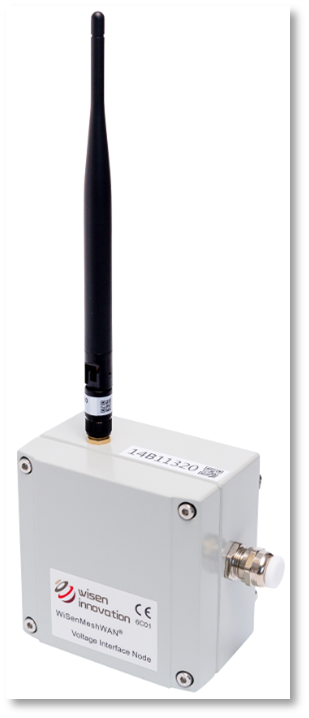

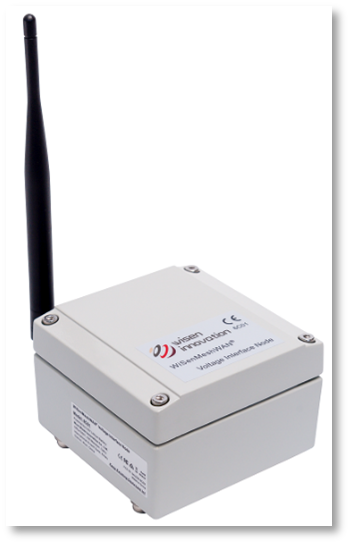

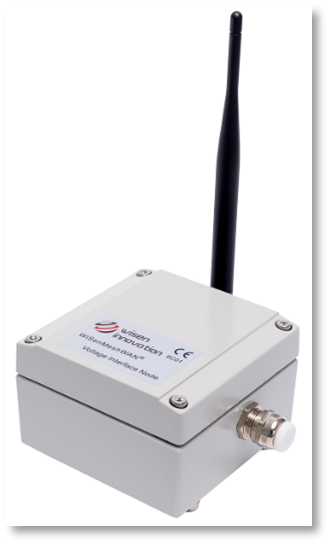

6C10 Type - 1-Channel 4-20mA/1-5V Interface Node

WiSenMeshWAN® Product @ 915, 868, 433MHz Radio Frequency
