Applications: A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T modifications) to and data collection from all the nodes involved in a mesh network (L-Series); meanwhile, it forwards the data and system information to the remote server via mobile network or the local server via standard RS232 connections.

Casing and Painting Materials:  Aluminium-Alloy Die Castings 12 (Epoxy Polyester Powder Coating)
IP Rating:  >= IP66
Operating Temperature:  -40 to 85°C
Fire Proof:  Approved
Certificates:  CE, FCC, ACMA, RoHS, REACH
*Purchasable from Leica Geosystem
  •   6005 Type - WiSenMeshWAN® Smart Gateway
     Basics
    Primary Battery Power (Internal) Qty. x 4 (3.6V Lithium primary D-Cell ER34615)
    Battery Connection Standard Aluminium Battery Holder
    Secondary DC Power (External) 7 - 32VDC @ Min. 2A (e.g. 110-240VAC to 12VDC adaptor)
    Tertiary Power (External) 3.6VDC Battery Unit or Solar Unit
    Mobile Network Stop Voltage ≥ 2.65VDC
    Local Storage 8GB (Min. 1.5 Yrs Storage)
    L x W x H 180 x 140 x 60mm
    Weight ≤ 2.0kg
    Cable Gland

    Qty. 1 x EMC-CMA12 for external RS232 connection

    Qty. 1 x EMC-CMA14 for external DC input power connection
    Wire Connection DC In - Spring type wiring terminal
      External Interface
    Wireless Module Compatible with 2G/2.5G/3G/4G of Micro SIM card
    Wired Port RS232
      WSN Interface
    Mesh Wireless Interface WiSenMeshWAN® Protocol
    Low Power Mode T≥5min and Server Connection Ratio DTU_T = [1,99]T
      Standard System Parameter
    Temperature Measurement Range: -40 to 85°C; Accuracy: ±1°C, typical 0.5°C; Resolution: 0.1°C
    Voltage Accuracy: ± 0.1V
     Product 2D Show



      For Installation Brackets, please refer to https://www.wisencn.com/accessory



  • Common Information

    Type Specific

    Product Calibration Certificate: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Calibration.
    Note: Every unit from WiSen has been fully electrically tested, calibrated, radio verified and mesh examined while individual calibration certificate is issued before shipped to our global customers.

    Note: Only for "Ethernet Daughter Board: Local Software Configuration Method".

  • FCC

    ACMA Certified

    CE

    Others

  • WiSen® Programmer.zip: Firmware upgrade via WiSen Program Lead;
    WiSen® SD Reader.zip: Data download or rescue from in a unit with SD card storage;
    WiSen® Standard Serial Port Monitoring Software.zip: Data communication via a gateway on a Windows PC;
    Please refer to "Technical Document" for instructions.

    Common Software

    Leica GeoMos Specific

    WiSen Downloader Installer v1.2.0.msi: Software to integrate Wisen data into Leica GeoMoS.
    Note: Downloadable from WiSen® Visualisation Platform, under /Download & Upload/Calibration & Document & Software/Software.

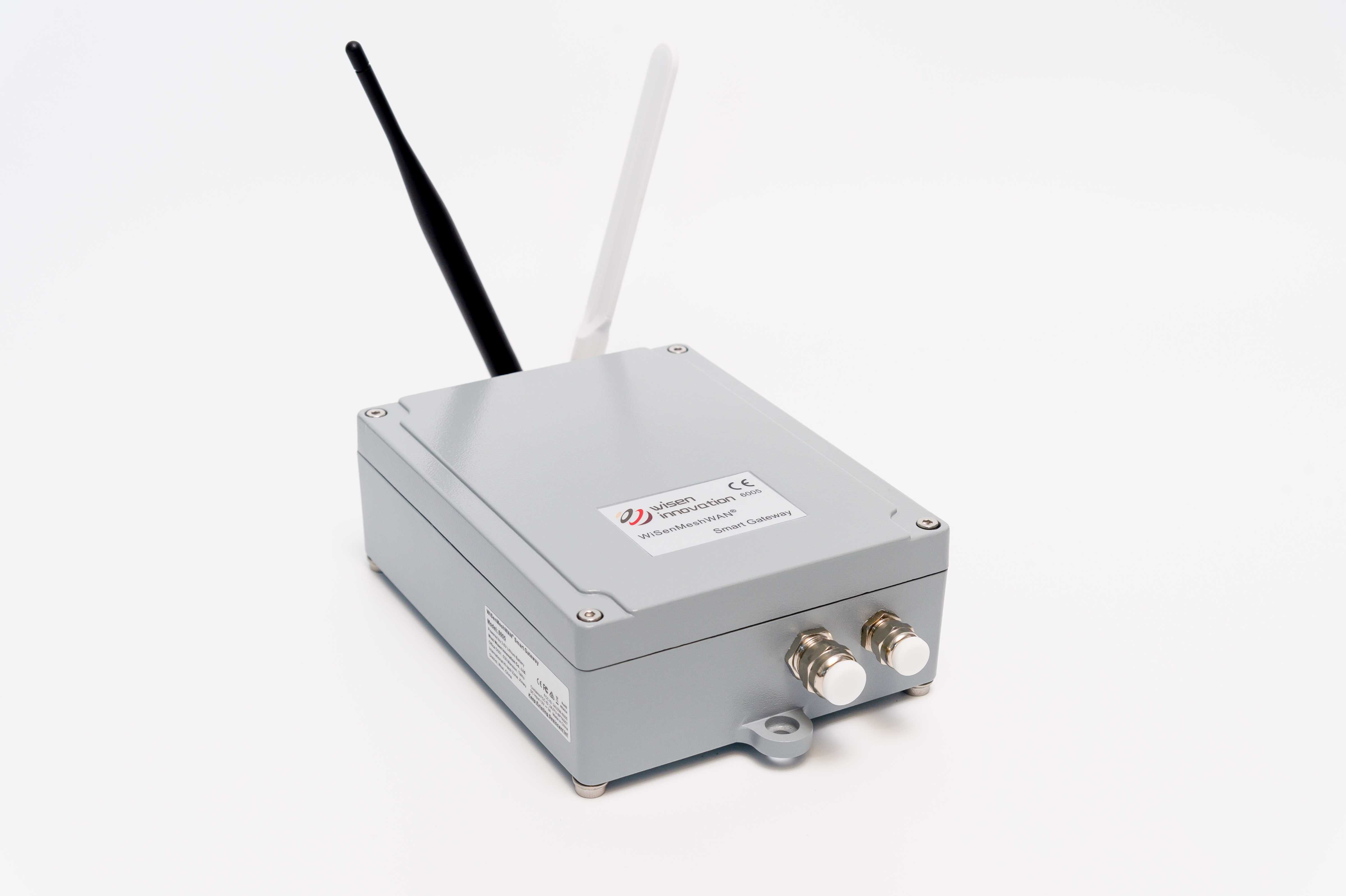

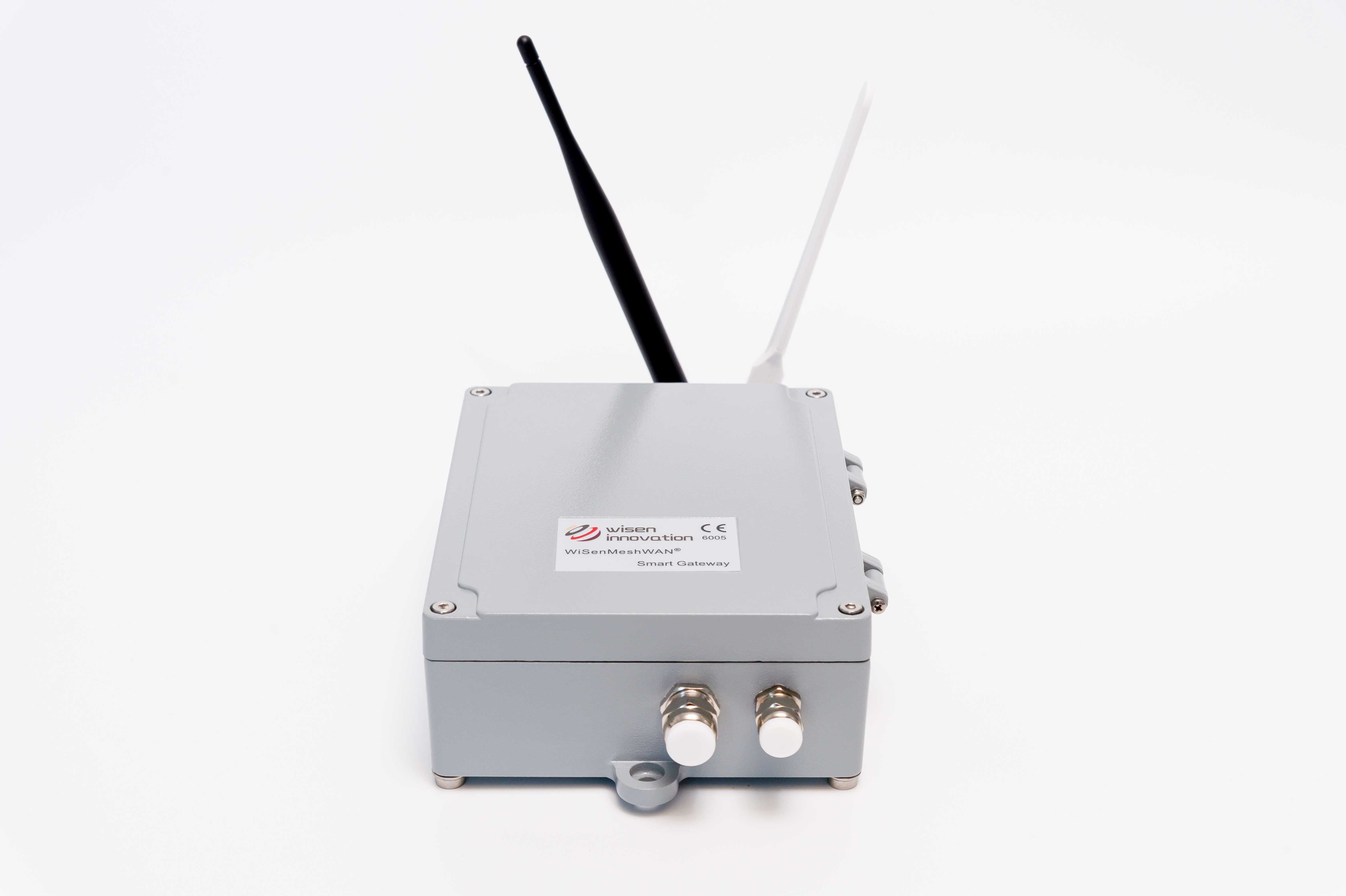

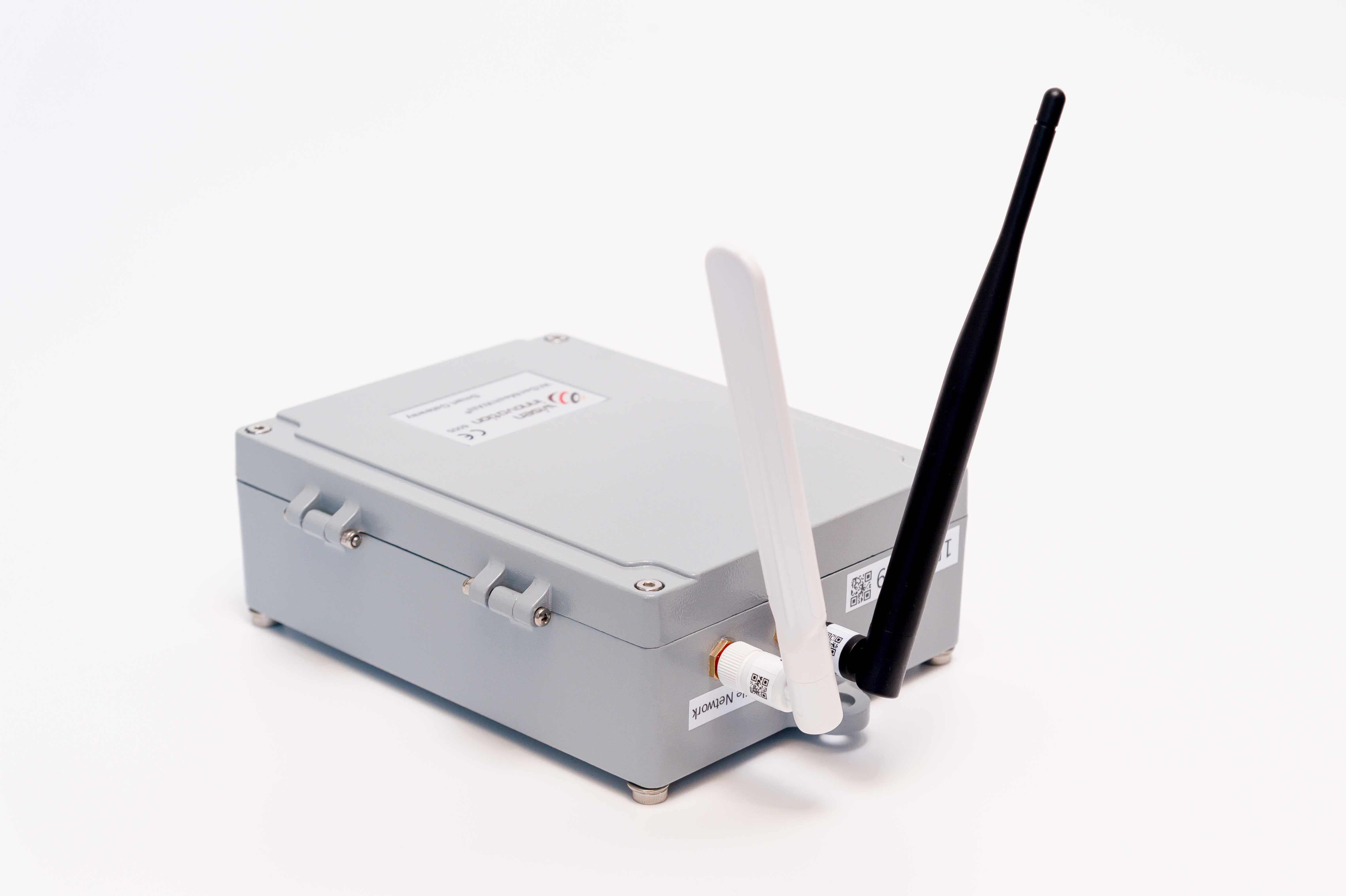

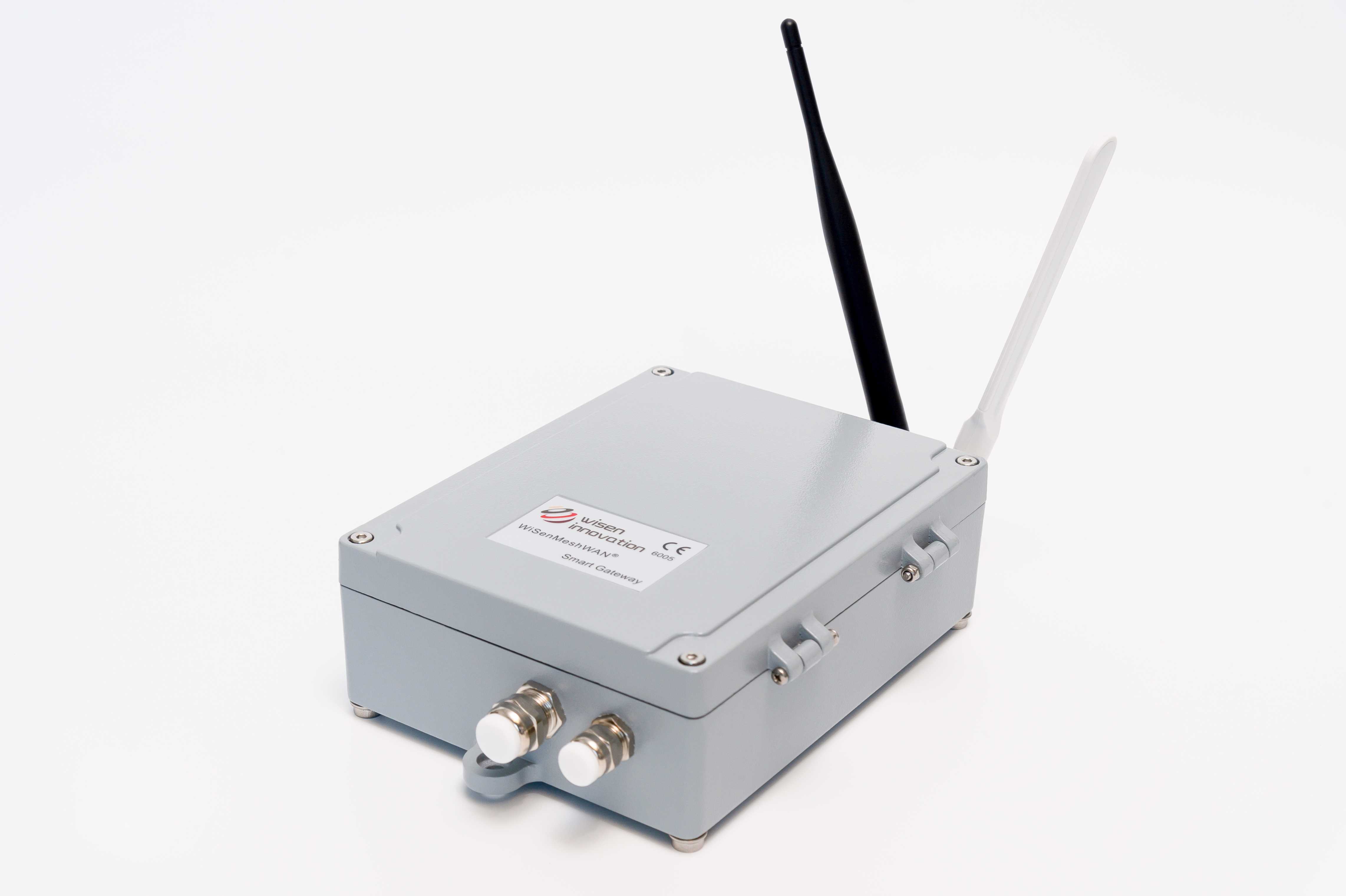

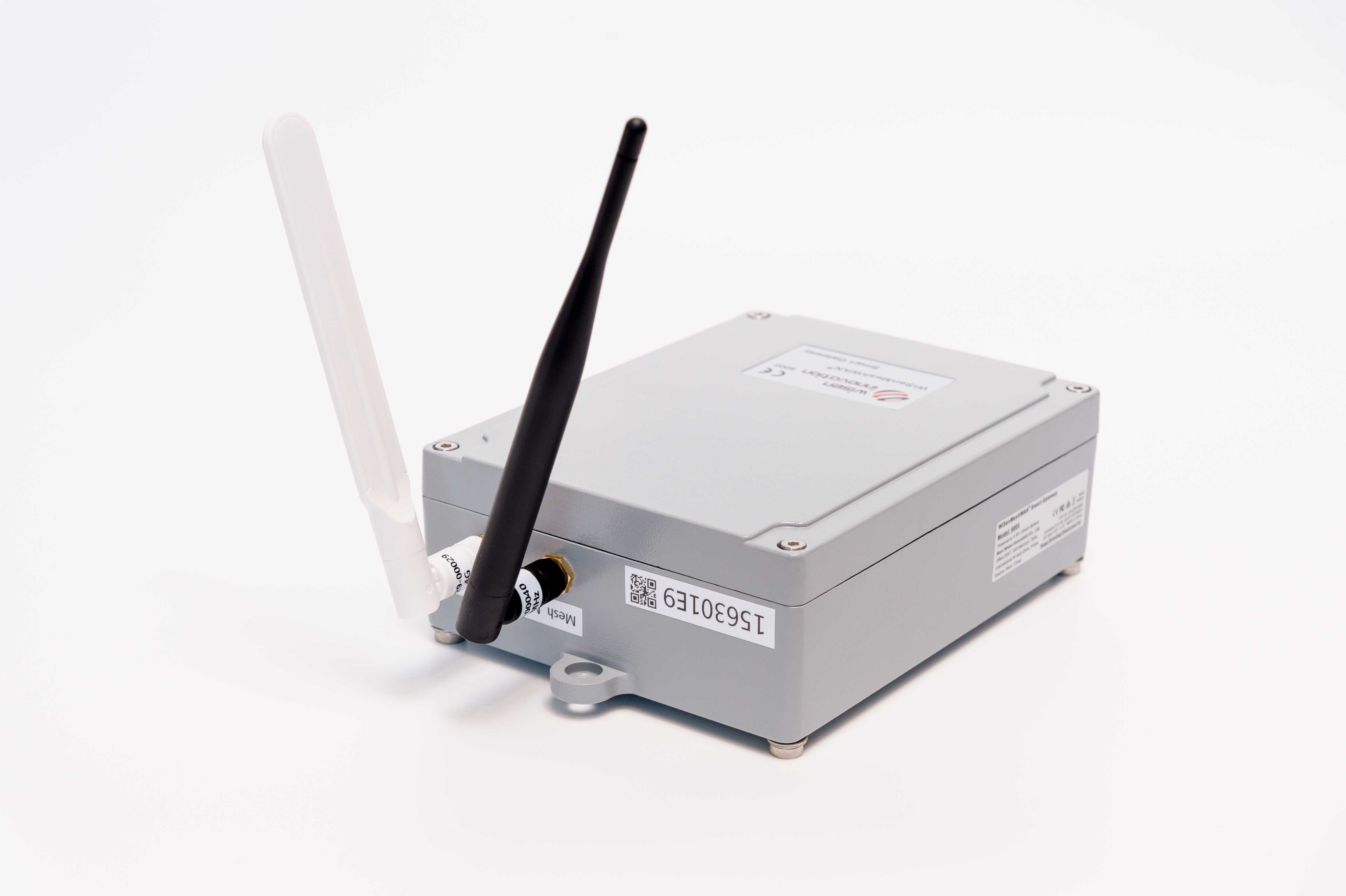

6005 Type - Smart Gateway

WiSenMeshWAN® Product @ 915, 868, 433MHz Radio Frequency
